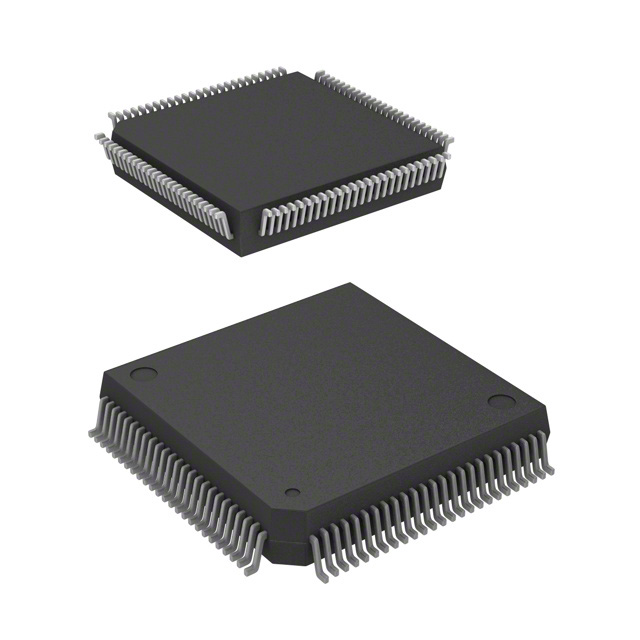

DF3067RVX13V
IC MCU 16BIT 128KB FLASH 100QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation H8/300H series microcontroller, part number DF3067RVX13V, is a 16-bit device featuring a 13MHz H8/300H core. This component offers 128KB of FLASH program memory and 4KB of RAM. Integrated peripherals include DMA, PWM, and WDT, alongside connectivity options for SCI and SmartCard interfaces. It also incorporates 8x10-bit A/D converters and 2x8-bit D/A converters. The device operates within a voltage range of 3V to 5.5V and has an operating temperature range of -20°C to 75°C. Packaged in a 100-QFP for surface mounting, this microcontroller is suitable for applications in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: H8® H8/300HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-QFP |
| Mounting Type | Surface Mount |
| Speed | 13MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8/300H |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | SCI, SmartCard |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 70 |
| Programmable | Not Verified |
Request a Quote
