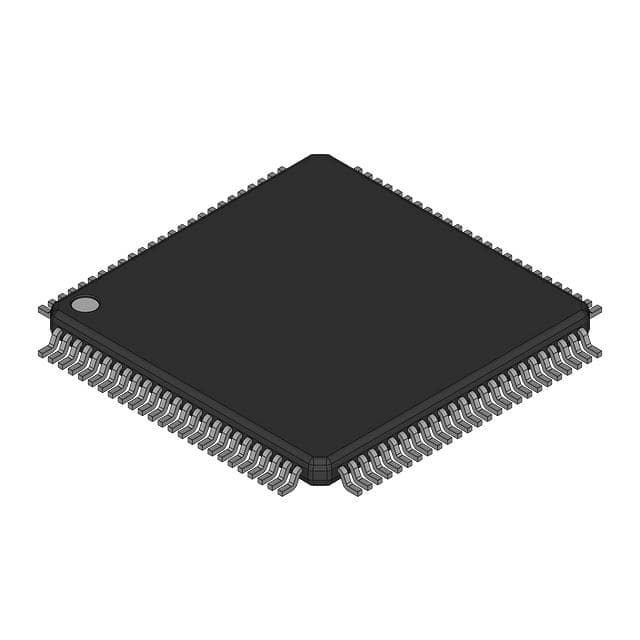

DF3048FI16V
IC MCU 16BIT 128KB FLASH 100QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation's H8/300H series microcontroller, part number DF3048FI16V, is a 16-bit device operating at 16MHz. This unit features 128KB of FLASH program memory and 4KB of RAM. Integrated peripherals include DMA, PWM, and WDT, alongside an 8x10-bit A/D converter and 2x8-bit D/A converters. Connectivity options include SCI and SmartCard interfaces. The DF3048FI16V is housed in a 100-QFP (14x14) surface-mount package and operates within a temperature range of -20°C to 75°C. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: H8® H8/300HRoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-BFQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8/300H |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SCI, SmartCard |
| Peripherals | DMA, PWM, WDT |
| Supplier Device Package | 100-QFP (14x14) |
| Number of I/O | 70 |
| Programmable | Not Verified |
