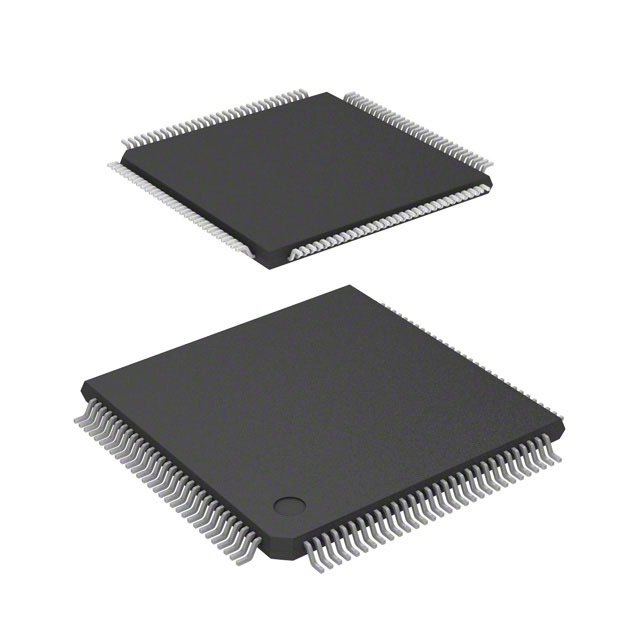

DF2633F25V
IC MCU 16BIT 256KB FLASH 128QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation's H8® H8S/2600 series microcontroller, part number DF2633F25V, is a 16-bit device operating at up to 25MHz. This component features 256KB of FLASH program memory and 16KB of RAM. On-chip peripherals include DMA, POR, PWM, and WDT. Connectivity options are supported via I2C, IrDA, SCI, and SmartCard interfaces. The DF2633F25V is equipped with 16 channels of 10-bit Analog-to-Digital conversion and 4 channels of 8-bit Digital-to-Analog conversion. It offers 73 programmable I/O lines and utilizes an internal oscillator. The device operates within a voltage range of 3V to 3.6V and has an operating temperature range of -20°C to 75°C. Supplied in a 128-QFP (14x20) surface mount package, this microcontroller is suitable for applications in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: H8® H8S/2600RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-BFQFP |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8S/2600 |
| Data Converters | A/D 16x10b; D/A 4x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, IrDA, SCI, SmartCard |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 128-QFP (14x20) |
| Number of I/O | 73 |
| Programmable | Not Verified |
