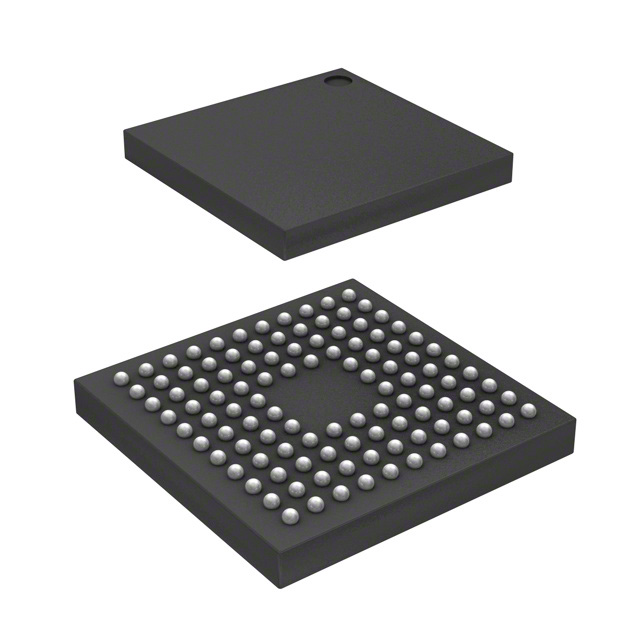

DF2319CVLP25V
IC MCU 16BIT 512KB FLSH 113TFLGAManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8S/2300 series microcontroller, part number DF2319CVLP25V. This 16-bit H8S/2000 core microcontroller operates at 25MHz and features 512KB of FLASH program memory and 16KB of RAM. On-chip peripherals include a POR, PWM, and WDT. The device offers 8 channels of 10-bit A/D conversion and 2 channels of 8-bit D/A conversion. Connectivity options include SCI and SmartCard interfaces. With 70 I/O lines, this surface mount component is housed in a 113-TFLGA (8x8) package. The operating voltage range is 2.7V to 3.6V, with an operating temperature range of -20°C to 75°C. This component is suitable for applications in industrial automation, automotive, and consumer electronics.
Additional Information
Series: H8® H8S/2300RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 113-TFLGA |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8S/2000 |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | SCI, SmartCard |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 113-TFLGA (8x8) |
| Number of I/O | 70 |
| Programmable | Not Verified |
Request a Quote
