DF2239TE20V

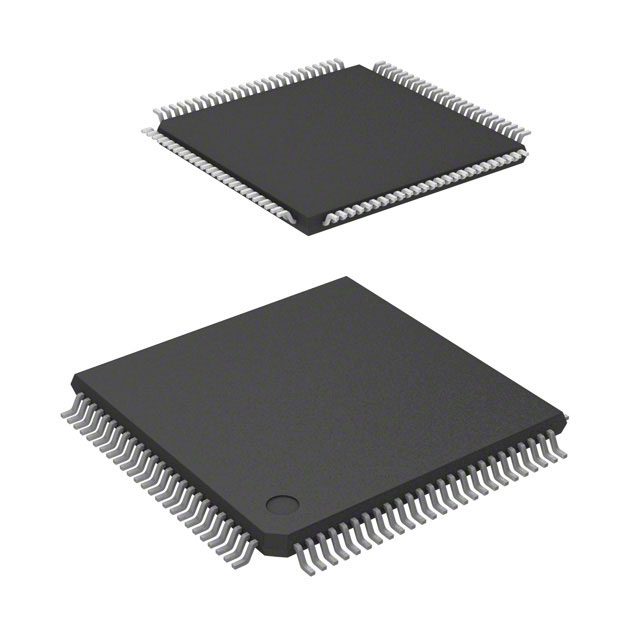

IC MCU 16BIT 384KB FLASH 100TQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8S/2200 series DF2239TE20V microcontroller. This 16-bit MCU features an H8S/2000 core operating at 20MHz. It offers 384KB of FLASH program memory and 32KB of RAM. Integrated peripherals include DMA, POR, PWM, and WDT. Connectivity options consist of I2C, SCI, and SmartCard interfaces. The device includes 8x10-bit A/D converters and 2x8-bit D/A converters. Supplied in a 100-TQFP (14x14) package, this surface-mount component operates from 2.7V to 3.6V and is suitable for operation within a -20°C to 75°C ambient temperature range. This component is commonly utilized in industrial automation, automotive, and consumer electronics applications.
Additional Information
Series: H8® H8S/2200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 384KB (384K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8S/2000 |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | I2C, SCI, SmartCard |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 100-TQFP (14x14) |
| Number of I/O | 72 |
| Programmable | Not Verified |
