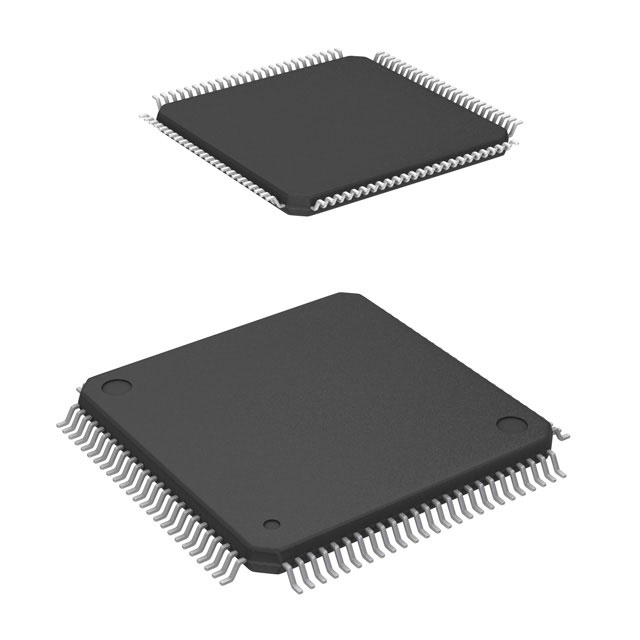

DF2218TF24V
IC MCU 16BIT 128KB FLASH 100TQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8S/2200 series microcontroller, part number DF2218TF24V. This 16-bit MCU features an H8S/2000 core operating at 24MHz, with 128KB of FLASH program memory and 12KB of RAM. Connectivity options include SCI, SmartCard, and USB interfaces. The device is equipped with 6x10-bit A/D converters and peripherals such as DMA, POR, PWM, and WDT. It is supplied in a 100-TQFP (12x12) surface-mount package and operates within a temperature range of -20°C to 75°C. This component is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: H8® H8S/2200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TQFP |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 12K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8S/2000 |
| Data Converters | A/D 6x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | SCI, SmartCard, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 100-TQFP (12x12) |
| Number of I/O | 69 |
| Programmable | Not Verified |
