DF2168VT33V
IC MCU 16BIT 256KB FLASH 144TQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More

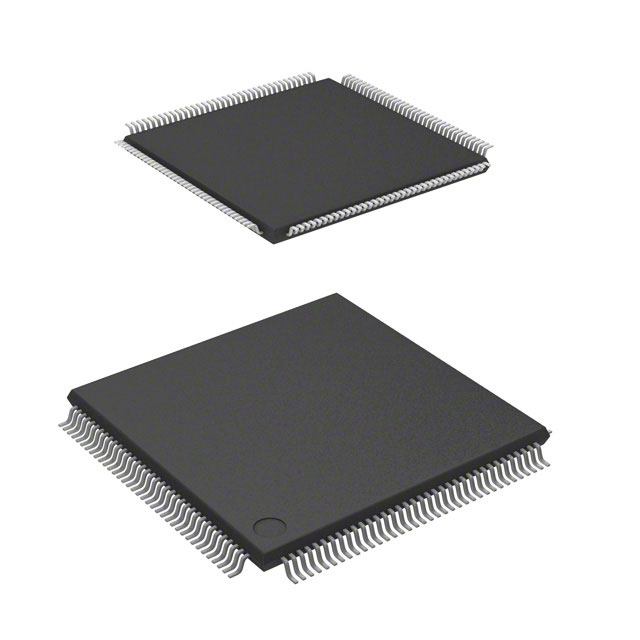

Renesas Electronics Corporation H8® H8S/2100 series microcontroller, part number DF2168VT33V. This 16-bit H8S/2000 core microcontroller operates at 33MHz and features 256KB of FLASH program memory with 40KB of RAM. On-chip peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Connectivity options are extensive, supporting I2C, IrDA, LPC, SCI, and SmartCard interfaces. The integrated data converters consist of 8 channels of 10-bit Analog-to-Digital (A/D) conversion and 2 channels of 8-bit Digital-to-Analog (D/A) conversion. This device offers 106 I/O lines and operates within a voltage range of 3V to 3.6V. The DF2168VT33V is housed in a 144-TQFP (16x16) surface mount package, suitable for industrial and automotive applications.
Additional Information
Series: H8® H8S/2100RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-TQFP |
| Mounting Type | Surface Mount |
| Speed | 33MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 40K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8S/2000 |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, IrDA, LPC, SCI, SmartCard |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 144-TQFP (16x16) |
| Number of I/O | 106 |
| Programmable | Not Verified |
