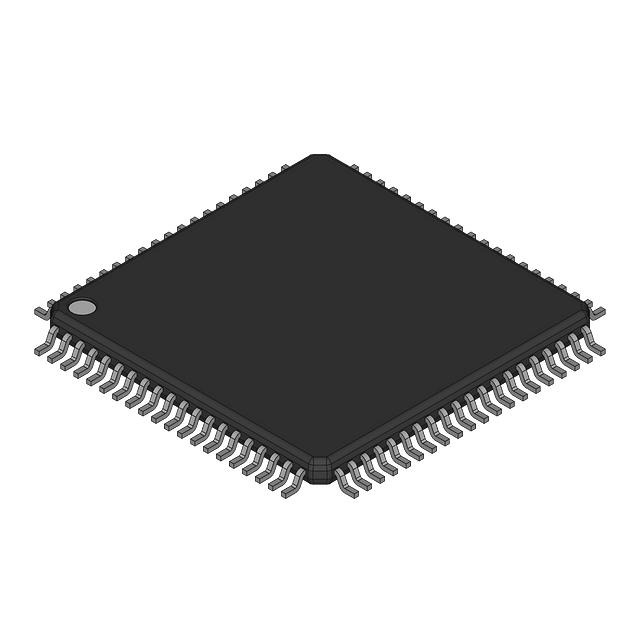

DF2138RFA20JV
IC MCU 16BIT 128KB FLASH 80QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
H8S/2000 H8® H8S/2100 Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH 80-QFP (14x14)
Additional Information
Series: H8® H8S/2100RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 80-BQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8S/2000 |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | Host Interface, I2C, IrDA, SCI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 80-QFP (14x14) |
| Number of I/O | 58 |
| Programmable | Not Verified |
