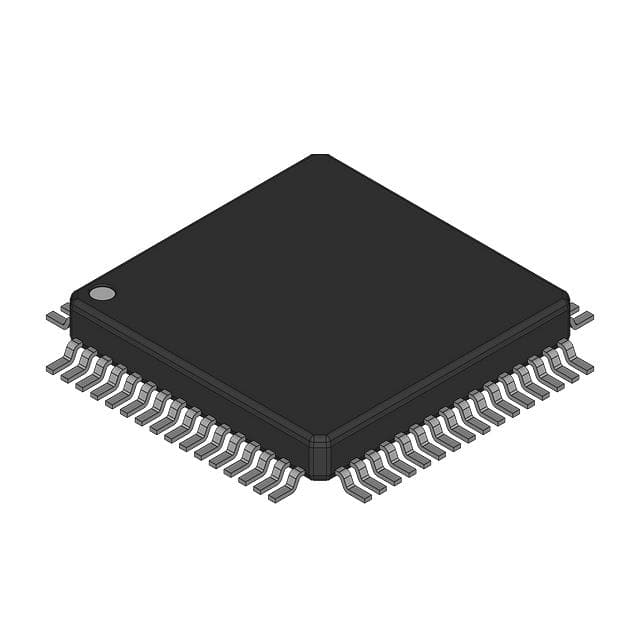

DF2128FA20
IC MCU 16BIT 128KB FLASH 64QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8S/2100 series microcontroller, part number DF2128FA20. This 16-bit microcontroller features an H8S/2000 core operating at 20MHz, equipped with 128KB of FLASH program memory and 4KB of RAM. Connectivity options include I2C and SCI interfaces. The device integrates an 8-channel, 10-bit Analog-to-Digital converter and peripherals such as Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). With 43 general-purpose I/O pins and an internal oscillator, it is housed in a 64-QFP (14x14) surface-mount package. The operating temperature range is -20°C to 75°C, and it requires a supply voltage of 4.5V to 5.5V. This component is utilized in industrial automation and consumer electronics applications.
Additional Information
Series: H8® H8S/2100RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 64-BQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8S/2000 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | I2C, SCI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 64-QFP (14x14) |
| Number of I/O | 43 |
| Programmable | Not Verified |
