D64F3337YFLH16V
IC MCU 8BIT 60KB FLASH 80QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation H8/300 series microcontroller, part number D64F3337YFLH16V, features an 8-bit H8/300 core operating at 16MHz. This component offers 60KB of FLASH program memory and 2KB of RAM. It includes an 8x10-bit Analog-to-Digital converter and 2x8-bit Digital-to-Analog converters. Peripherals consist of Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Connectivity options include Host Interface, I2C, and SCI. The device is housed in an 80-QFP (14x14) package, suitable for surface mounting. It operates within a voltage range of 4.5V to 5.5V and at an ambient temperature of -20°C to 75°C. This microcontroller is utilized in industrial automation and consumer electronics applications.
Additional Information
Series: H8® H8/300RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |

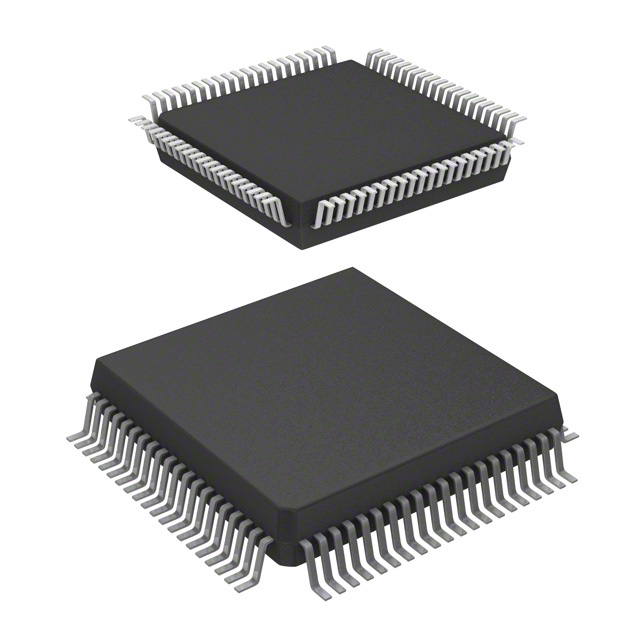

| Package / Case | 80-BQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 60KB (60K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8/300 |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | Host Interface, I2C, SCI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 80-QFP (14x14) |
| Number of I/O | 74 |
| Programmable | Not Verified |
