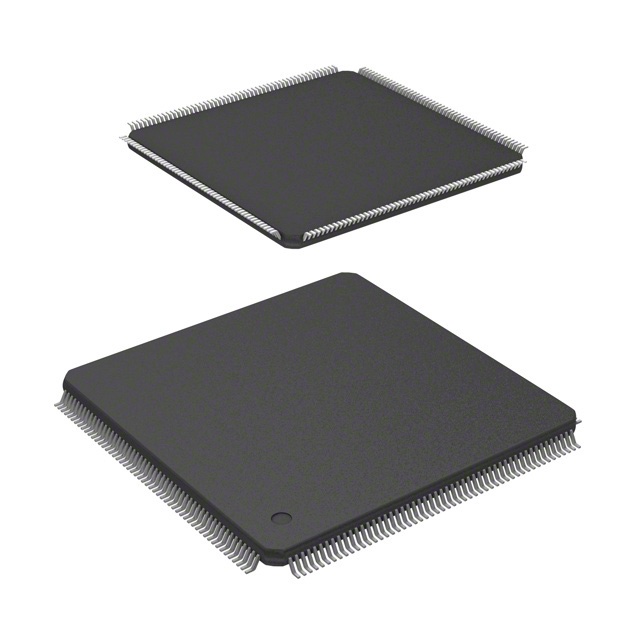

D6417709SF100B
IC MCU 32BIT ROMLESS 208LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation SH-3 SuperH® SH7700 Series microcontroller featuring a 32-bit single-core architecture operating at 100MHz. This ROMless device, part number D6417709SF100B, is housed in a 208-LQFP (28x28) surface mount package. It offers 16K x 8 RAM, 96 I/O lines, and integrated peripherals including DMA, POR, and WDT. Connectivity options include EBI/EMI, FIFO, IrDA, SCI, and SmartCard interfaces. The component includes 8x10-bit A/D converters and 2x8-bit D/A converters. Operating voltage ranges from 1.55V to 1.95V with an ambient operating temperature of -20°C to 75°C. This component is utilized in applications requiring high-performance processing and flexible memory configurations, such as industrial automation and consumer electronics.
Additional Information
Series: SuperH® SH7700RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | - |
| RAM Size | 16K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | SH-3 |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.55V ~ 1.95V |
| Connectivity | EBI/EMI, FIFO, IrDA, SCI, SmartCard |
| Peripherals | DMA, POR, WDT |
| Supplier Device Package | 208-LQFP (28x28) |
| Number of I/O | 96 |
| Programmable | Not Verified |
