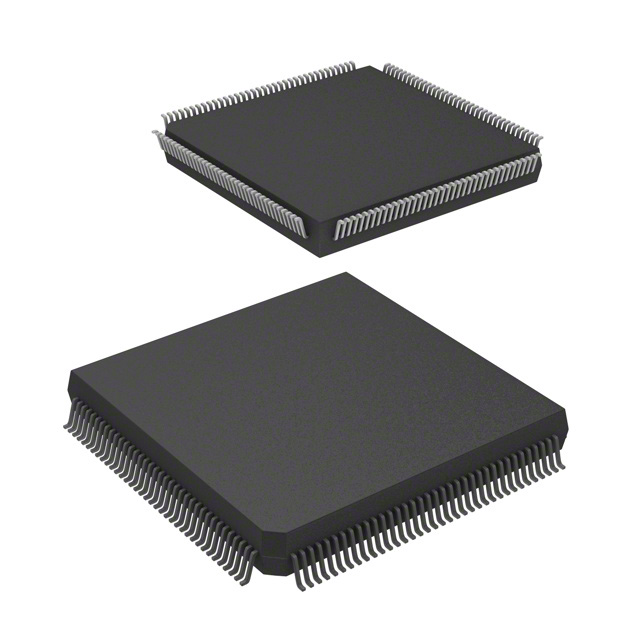

D12332VFC25V
IC MCU 16BIT ROMLESS 144QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation H8® H8S/2300 series H8S/2000 core microcontroller, part number D12332VFC25V, is a 16-bit ROMless device operating at 25MHz. This microcontroller features 8K x 8 RAM, an A/D converter with 12 channels of 10-bit resolution, and a D/A converter with 4 channels of 8-bit resolution. Peripherals include DMA, POR, PWM, and WDT. Connectivity options encompass SCI and SmartCard interfaces. With 106 I/O lines and an operating temperature range of -20°C to 75°C, the D12332VFC25V is suitable for applications requiring robust control and communication. It is supplied in a 144-QFP (20x20) package and requires a supply voltage between 2.7V and 3.6V. This component is commonly utilized in industrial automation and consumer electronics.
Additional Information
Series: H8® H8S/2300RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-BFQFP |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | - |
| RAM Size | 8K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | H8S/2000 |
| Data Converters | A/D 12x10b; D/A 4x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | SCI, SmartCard |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 144-QFP (20x20) |
| Number of I/O | 106 |
| Programmable | Not Verified |
