D12324SVF25V

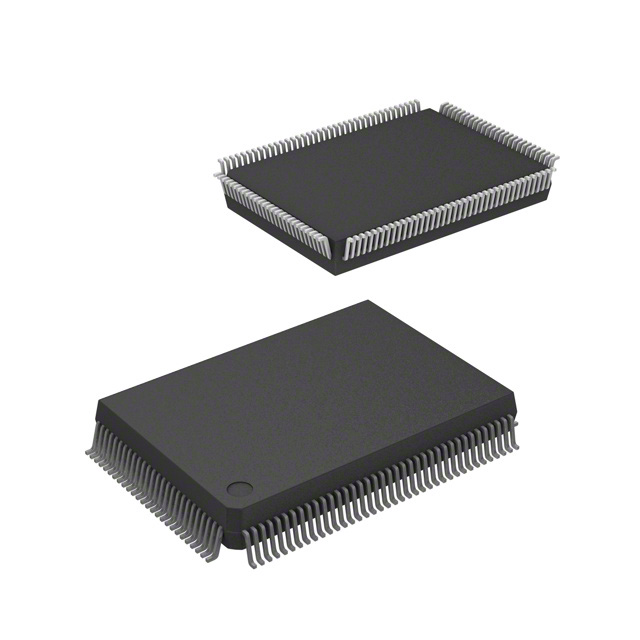

IC MCU 16BIT ROMLESS 128QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8S/2300 series microcontroller, part number D12324SVF25V. This 16-bit H8S/2000 core ROMless microcontroller operates at 25MHz and is housed in a 128-QFP (14x20) package for surface mounting. It features 32KB x 8 RAM and includes connectivity options such as SCI and SmartCard interfaces. Integrated peripherals include DMA, POR, PWM, and WDT for robust system control. The component offers 8 channels of 10-bit Analog-to-Digital conversion and 2 channels of 8-bit Digital-to-Analog conversion. This device is suitable for applications in the industrial automation, automotive, and consumer electronics sectors. Operating temperature range is -20°C to 75°C.
Additional Information
Series: H8® H8S/2300RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-BFQFP |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | - |
| RAM Size | 32K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | H8S/2000 |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | SCI, SmartCard |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 128-QFP (14x20) |
| Number of I/O | 86 |
| Programmable | Not Verified |
