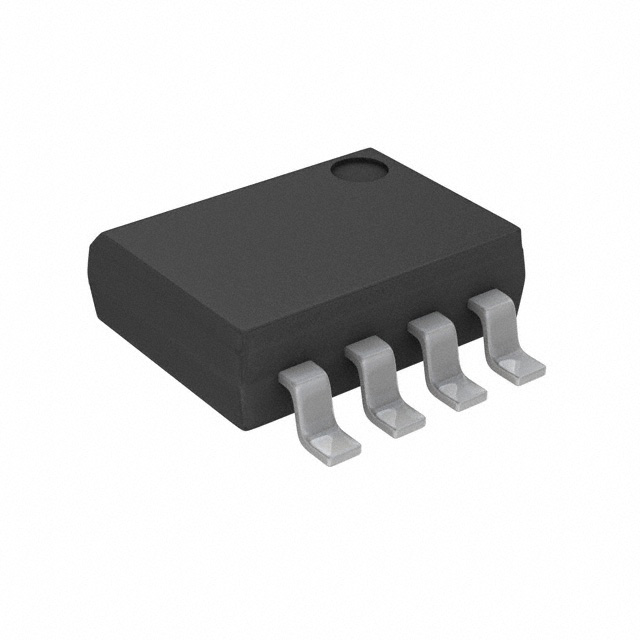

AT45DB011D-SSH-SL954
IC FLASH 1MBIT SPI 66MHZ 8SOICManufacturer: Renesas Electronics Corporation
Categories: Memory
Quality Control: Learn More
Renesas Electronics Corporation AT45DB011D-SSH-SL954 is a 1Mbit non-volatile FLASH memory component featuring a Serial Peripheral Interface (SPI). This device operates at a clock frequency of 66 MHz and is organized as 256 Bytes x 512 pages, offering a write cycle time of 4ms per page. Designed for surface mounting, it is housed in an 8-SOIC package with a standard 0.154" width. The AT45DB011D-SSH-SL954 operates within a supply voltage range of 2.7V to 3.6V and is rated for an operating temperature of -40°C to 85°C (TC). This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 6 week(s)Product Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH |
| Clock Frequency | 66 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-SOIC |
| Write Cycle Time - Word, Page | 4ms |
| Memory Interface | SPI |
| Memory Organization | 256 Bytes x 512 pages |
| Programmable | Not Verified |
Request a Quote
