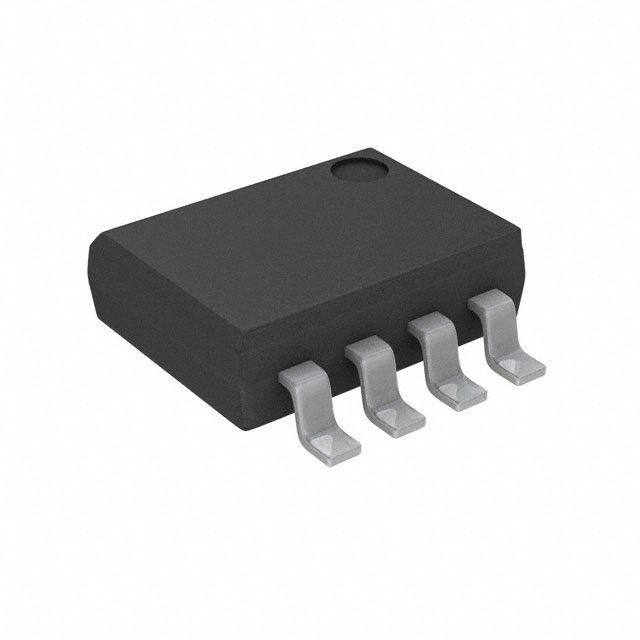

AT25DF081A-SSH-B
IC FLASH 8MBIT SPI 100MHZ 8SOICManufacturer: Renesas Electronics Corporation
Categories: Memory
Quality Control: Learn More
Renesas Electronics Corporation presents the AT25DF081A-SSH-B, a non-volatile FLASH memory integrated circuit. This component offers 8Mbit of memory capacity, accessible via a high-speed SPI interface with a maximum clock frequency of 100 MHz. The memory is organized into 4096 pages, each 256 bytes in size. Designed for surface mount applications, it is housed in an 8-SOIC package. Operating within a voltage range of 2.7V to 3.6V, the AT25DF081A-SSH-B supports a wide operating temperature range of -40°C to 85°C. Write cycle times are 7µs for word operations and 3ms for page operations. This device is suitable for applications in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 8Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH |
| Clock Frequency | 100 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-SOIC |
| Write Cycle Time - Word, Page | 7µs, 3ms |
| Memory Interface | SPI |
| Memory Organization | 256 Bytes x 4096 pages |
| Programmable | Verified |
