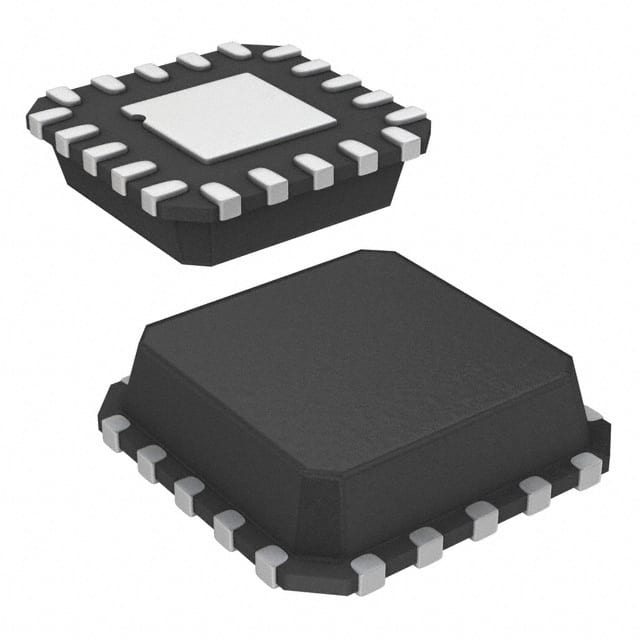

ISL9307IRTAANWZ-T7A
IC REG QUAD BUCK/LNR SYNC 16TQFNManufacturer: Renesas Electronics Corporation
Categories: Linear + Switching
Quality Control: Learn More
The Renesas Electronics Corporation ISL9307IRTAANWZ-T7A is a highly integrated power management IC featuring a combination of synchronous buck and linear regulators. This component provides four distinct outputs: two synchronous buck converters capable of 1.5A each, and two low dropout linear regulators, one rated for 300mA. The synchronous buck converters operate at a 3MHz switching frequency, enabling compact external component selection and efficient power conversion. The device supports an input voltage range of 1.5V to 5.5V and is housed in a 16-TQFN (4x4) package with an exposed pad for enhanced thermal performance. Its dual topology of switching and linear regulation makes it suitable for applications in mobile devices, portable electronics, and IoT systems where power efficiency and flexible voltage regulation are critical. The ISL9307IRTAANWZ-T7A is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V ~ 5.5V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) |
| Supplier Device Package | 16-TQFN (4x4) |
| Voltage/Current - Output 1 | 0.8V ~ 5.5V, 1.5A |
| Voltage/Current - Output 2 | 0.8V ~ 5.5V, 1.5A |
| Voltage/Current - Output 3 | 3.3V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 4 |
