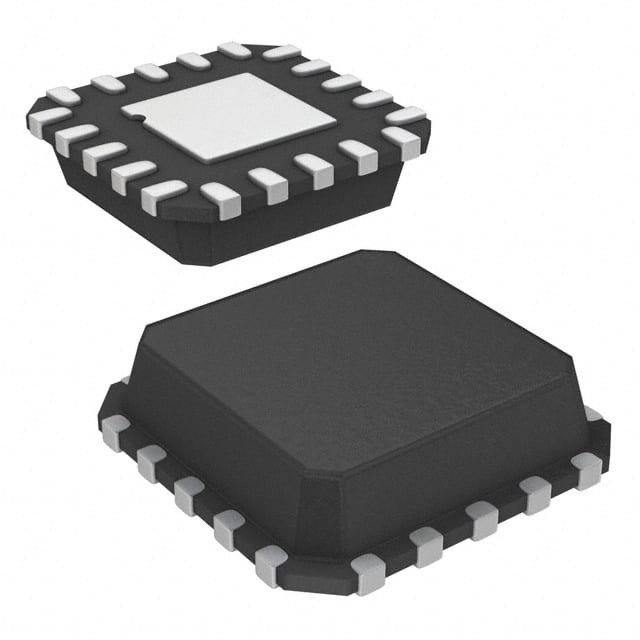

ISL9307IRTAAJYZ-T7A
IC REG QUAD BUCK/LNR SYNC 16TQFNManufacturer: Renesas Electronics Corporation
Categories: Linear + Switching
Quality Control: Learn More
Renesas Electronics Corporation ISL9307IRTAAJYZ-T7A. This power management IC integrates two synchronous buck converters and two linear regulators, offering a flexible solution for power sequencing and regulation. The synchronous buck converters operate at 3MHz, providing up to 1.5A output current with adjustable output voltages from 0.8V to 5.5V. The integrated LDOs deliver up to 300mA with a fixed 2.8V output. Designed for surface mounting, this device is available in a 16-TQFN (4x4) package with exposed pad, supplied on tape and reel. Its operating temperature range is -40°C to 85°C. This component is suitable for applications in mobile devices, portable electronics, and IoT systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V ~ 5.5V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) |
| Supplier Device Package | 16-TQFN (4x4) |
| Voltage/Current - Output 1 | 0.8V ~ 5.5V, 1.5A |
| Voltage/Current - Output 2 | 0.8V ~ 5.5V, 1.5A |
| Voltage/Current - Output 3 | 2.8V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 4 |
