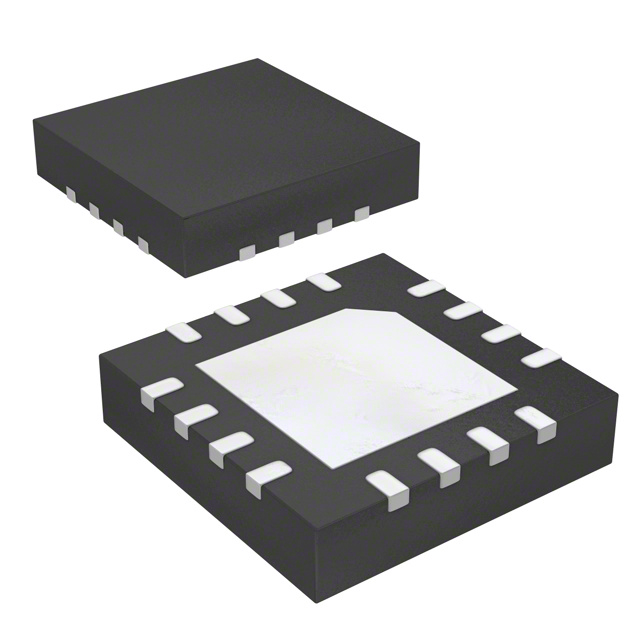

ISL9305IRTHWCNYZ-T
IC REG QUAD BUCK/LNR 3MHZ 16TQFNManufacturer: Renesas Electronics Corporation
Categories: Linear + Switching
Quality Control: Learn More
Renesas Electronics Corporation ISL9305IRTHWCNYZ-T is a highly integrated power management IC featuring four independent voltage regulators. This device offers a versatile combination of two high-efficiency step-down (buck) converters capable of delivering up to 1.5A each at 1.2V and 1.8V respectively, and two low-dropout (LDO) linear regulators. The buck converters operate at a 3MHz switching frequency, optimizing for a compact solution size and efficient power conversion. The LDO outputs provide a 3.3V rail with up to 300mA current capability. Designed for surface mount installation in a 16-TQFN (4x4) package, the ISL9305IRTHWCNYZ-T is suitable for applications requiring flexible and efficient power delivery in a small footprint. It operates across a wide supply voltage range of 1.5V to 5.5V and is rated for an operating temperature range of -40°C to 85°C. This component finds application in various consumer electronics and industrial control systems demanding robust and multi-output power solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V ~ 5.5V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) (2), Linear (LDO) (2) |
| Supplier Device Package | 16-TQFN (4x4) |
| Voltage/Current - Output 1 | 1.2V, 1.5A |
| Voltage/Current - Output 2 | 1.8V, 1.5A |
| Voltage/Current - Output 3 | 3.3V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 4 |
