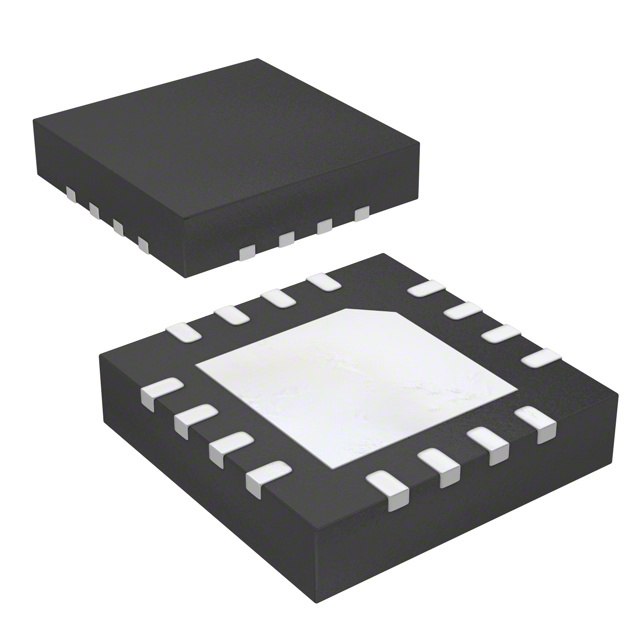

ISL9305IRTHWCLBZ-T
IC REG QUAD BUCK/LNR 3MHZ 16TQFNManufacturer: Renesas Electronics Corporation
Categories: Linear + Switching
Quality Control: Learn More
Renesas Electronics Corporation ISL9305IRTHWCLBZ-T is a power management IC featuring four independent voltage regulators. This component integrates two step-down (buck) converters and two linear (LDO) regulators, offering a versatile solution for complex power delivery. The buck converters operate at a 3MHz switching frequency, enabling the use of smaller external components and contributing to a compact 16-TQFN (4x4) package. The device supports a supply voltage range from 1.5V to 5.5V. Output 1 and Output 2 are capable of delivering 1.2V and 1.8V respectively, each with a 1.5A current capability. Output 3 provides 2.9V with a 300mA current rating. The ISL9305IRTHWCLBZ-T is designed for surface mount applications and operates within a temperature range of -40°C to 85°C. This device finds application in portable electronics, industrial control systems, and other power-sensitive designs requiring multiple regulated voltage rails. The component is supplied in a tape and reel package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V ~ 5.5V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) (2), Linear (LDO) (2) |
| Supplier Device Package | 16-TQFN (4x4) |
| Voltage/Current - Output 1 | 1.2V, 1.5A |
| Voltage/Current - Output 2 | 1.8V, 1.5A |
| Voltage/Current - Output 3 | 2.9V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 4 |
