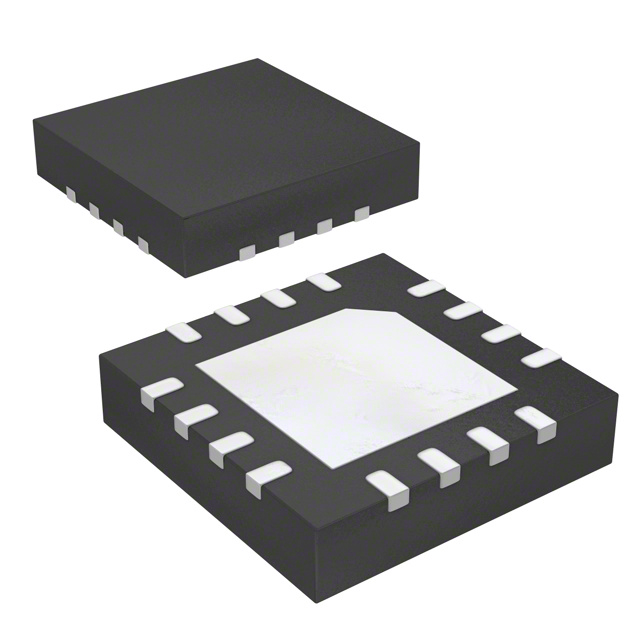

ISL9305IRTHWBNLZ-T
IC REG QUAD BUCK/LNR 3MHZ 16TQFNManufacturer: Renesas Electronics Corporation
Categories: Linear + Switching
Quality Control: Learn More
Renesas Electronics Corporation ISL9305IRTHWBNLZ-T is a power management integrated circuit featuring four regulated outputs. This component integrates two step-down (buck) converters and two low-dropout (LDO) linear regulators. The buck converters operate at a switching frequency of 3MHz, supporting a voltage input range of 1.5V to 5.5V. Specific output configurations include 1.2V at 1.5A and 1.5V at 1.5A for the buck stages. The LDO outputs provide 3.3V at 300mA. The ISL9305IRTHWBNLZ-T is housed in a 16-TQFN (4x4) package with an exposed pad, designed for surface mount integration. Its operating temperature range is -40°C to 85°C. This device is suitable for applications in consumer electronics and mobile devices requiring efficient and compact power delivery solutions. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V ~ 5.5V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) (2), Linear (LDO) (2) |
| Supplier Device Package | 16-TQFN (4x4) |
| Voltage/Current - Output 1 | 1.2V, 1.5A |
| Voltage/Current - Output 2 | 1.5V, 1.5A |
| Voltage/Current - Output 3 | 3.3V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 4 |
