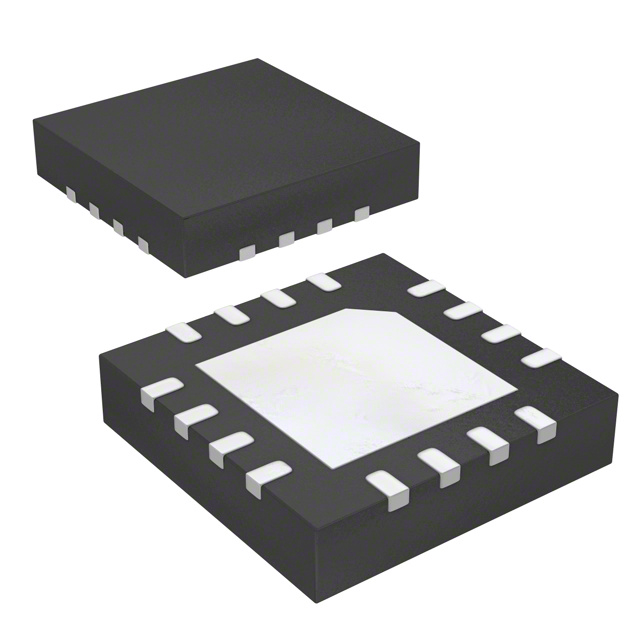

ISL9305IRTHAANLZ-T
IC REG QUAD BUCK/LNR 3MHZ 16TQFNManufacturer: Renesas Electronics Corporation
Categories: Linear + Switching
Quality Control: Learn More
Renesas Electronics Corporation ISL9305IRTHAANLZ-T is a highly integrated power management IC featuring four independent voltage regulators. This component offers a flexible solution with two step-down (buck) converters and two low-dropout linear (LDO) regulators. The buck converters are capable of delivering up to 1.5A each, with adjustable output voltages from 0.8V to 5.5V. The LDO outputs provide up to 300mA at a fixed 3.3V. Operating at a switching frequency of 3MHz, this device is suitable for applications requiring high efficiency and compact design. The ISL9305IRTHAANLZ-T is housed in a 16-TQFN (4x4) package with an exposed pad for enhanced thermal performance, designed for surface mount assembly. It operates across a supply voltage range of 1.5V to 5.5V and is rated for ambient temperatures from -40°C to 85°C. This power management solution finds application in various consumer electronics, mobile devices, and IoT platforms. It is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V ~ 5.5V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) (2), Linear (LDO) (2) |
| Supplier Device Package | 16-TQFN (4x4) |
| Voltage/Current - Output 1 | 0.8V ~ 5.5V, 1.5A |
| Voltage/Current - Output 2 | 0.8V ~ 5.5V, 1.5A |
| Voltage/Current - Output 3 | 3.3V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 4 |
