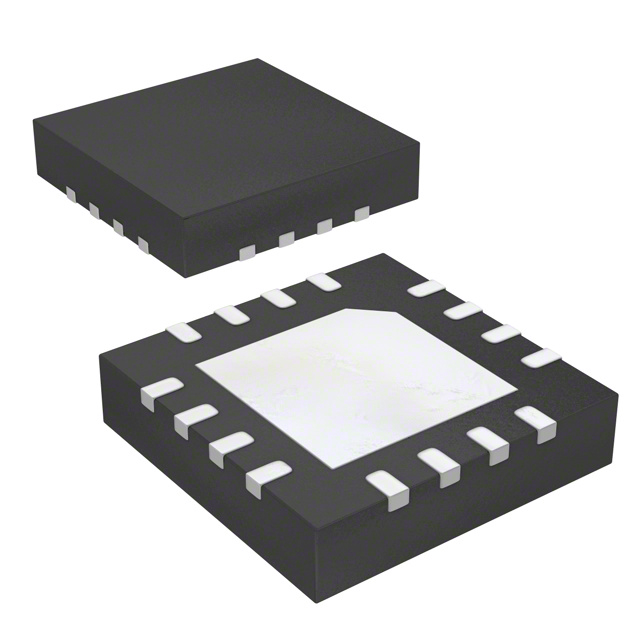

ISL9305IRTAANLZ-T
IC REG QUAD BUCK/LNR 3MHZ 16TQFNManufacturer: Renesas Electronics Corporation
Categories: Linear + Switching
Quality Control: Learn More
Renesas Electronics Corporation ISL9305IRTAANLZ-T is a highly integrated power management IC featuring four independent voltage regulators. This component offers two step-down (buck) converters, each capable of delivering up to 800mA, and two low-dropout linear (LDO) regulators. The buck converters operate at a switching frequency of 3MHz, enabling the use of smaller external components and contributing to a compact solution. The ISL9305IRTAANLZ-T is housed in a 16-TQFN (4x4) package with an exposed pad for enhanced thermal performance. Its input voltage range is 1.5V to 5.5V, and it is designed for surface mount applications. The operating temperature range is -40°C to 85°C. This device finds application in portable electronics and IoT devices where efficient power delivery and space constraints are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V ~ 5.5V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) (2), Linear (LDO) (2) |
| Supplier Device Package | 16-TQFN (4x4) |
| Voltage/Current - Output 1 | 0.8V ~ 5.5V, 800mA |
| Voltage/Current - Output 2 | 0.8V ~ 5.5V, 800mA |
| Voltage/Current - Output 3 | 3.3V, 350mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 4 |
