ISL6534CRZ
IC REG TRPL BUCK/LNR SYNC 32QFNManufacturer: Renesas Electronics Corporation
Categories: Linear + Switching
Quality Control: Learn More
Renesas Electronics Corporation ISL6534CRZ is a versatile power management IC featuring a triple output configuration. This component integrates two synchronous buck controllers with one linear regulator (LDO), offering a flexible solution for complex power delivery. The synchronous buck controllers support switching frequencies from 300kHz to 1MHz, enabling efficient step-down conversion. The device includes an integrated sequencer, and its 32-QFN (5x5) package with an exposed pad is designed for surface mount applications. This power management unit is suitable for use in applications such as consumer electronics, industrial control systems, and telecommunications infrastructure. The operating temperature range is 0°C to 70°C, and it accepts supply voltages from 3.3V to 12V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.3V ~ 12V |
| Frequency - Switching | 300kHz ~ 1MHz |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) |
| Supplier Device Package | 32-QFN (5x5) |
| Voltage/Current - Output 1 | Controller |
| Voltage/Current - Output 2 | Controller |
| Voltage/Current - Output 3 | Controller |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | Yes |
| Number of Outputs | 3 |
Request a Quote
Clients Also Buy
ISL9307IRTAANLZ-T7A
IC REG QUAD BUCK/LNR SYNC 16TQFN

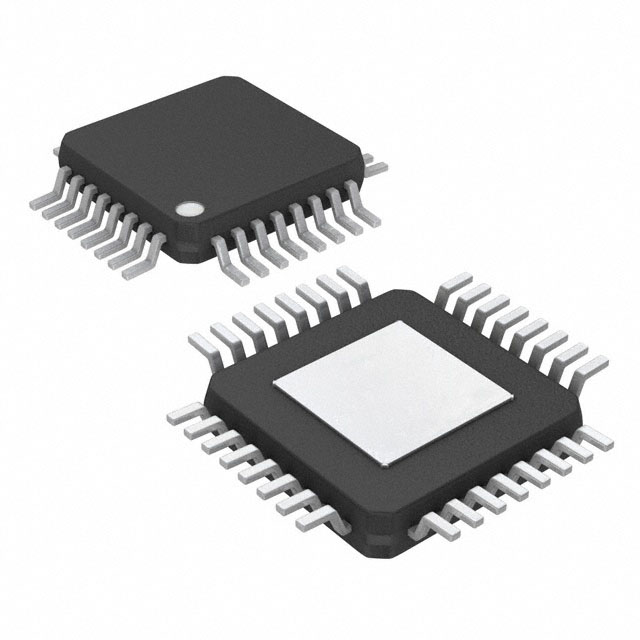

RAA230409GFT#AA0
