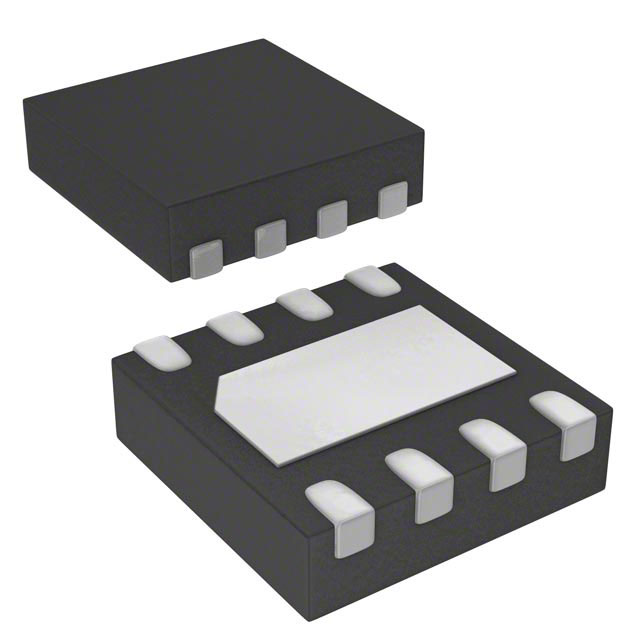

ISL80505IRAJZ
IC REG LINEAR POS ADJ 500MA 8DFNManufacturer: Renesas Electronics Corporation
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 8-DFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 8-VDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 4.6 mA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-DFN (3x3) |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable, Soft Start |
| PSRR | 60dB ~ 57dB (120Hz ~ 1kHz) |
| Voltage Dropout (Max) | 0.09V @ 500mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 5.7 mA |
