ISL80410IBEZ-T7A
IC REG LIN POS ADJ 150MA 8SOICManufacturer: Renesas Electronics Corporation
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Renesas Electronics Corporation ISL80410IBEZ-T7A is a positive adjustable linear voltage regulator IC. This component offers a single output with a maximum current capability of 150mA. The output voltage is adjustable from 2.5V to a maximum of 12V, with a dropout voltage of 0.61V at 150mA. Key features include an enable pin for control, over-current and over-temperature protection, and a quiescent current of 24 µA. The device operates with a wide input voltage range, up to 40V, and is supplied in an 8-SOIC-EP package suitable for surface mounting. The ISL80410IBEZ-T7A exhibits a Power Supply Rejection Ratio (PSRR) of 66dB at 100Hz. This regulator is designed for applications in automotive, industrial, and consumer electronics requiring stable voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

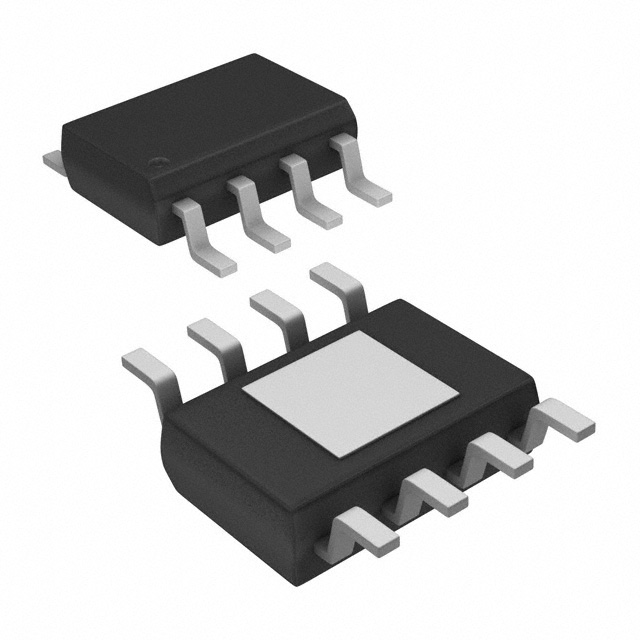

| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 24 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-SOIC-EP |
| Voltage - Output (Max) | 12V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Control Features | Enable |
| PSRR | 66dB (100Hz) |
| Voltage Dropout (Max) | 0.61V @ 150mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 125 µA |
