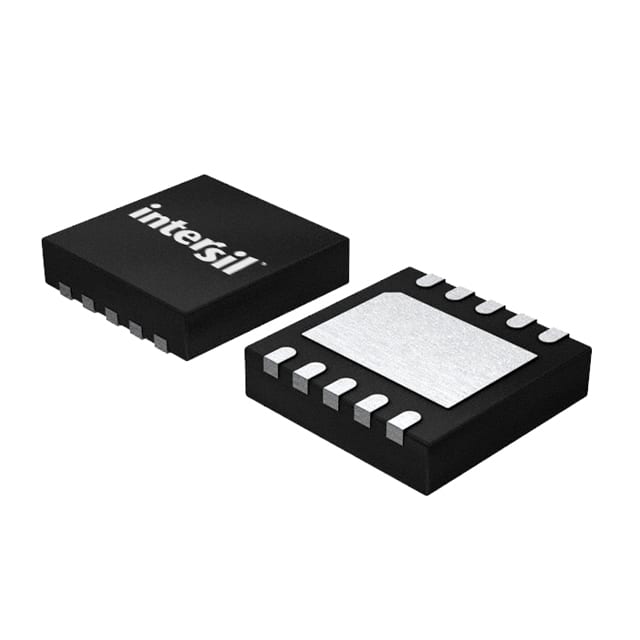

ISL80103IRAJZ-T7A
IC REG LINEAR POS ADJ 3A 10DFNManufacturer: Renesas Electronics Corporation
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Renesas Electronics Corporation ISL80103IRAJZ-T7A is a single-output adjustable positive linear voltage regulator IC capable of delivering up to 3A. This component features a low dropout voltage of 244mV at 3A and an input voltage range up to 6V, with an adjustable output from 0.8V to 5V. The ISL80103IRAJZ-T7A includes essential control features such as enable, power good, and soft start, enhancing system stability and power sequencing. Protection mechanisms include over-temperature and short-circuit protection. With a quiescent current of 9mA and a power supply rejection ratio (PSRR) of 62dB to 55dB across a frequency range of 120Hz to 1kHz, this device is suitable for demanding applications. It is supplied in a compact 10-DFN (3x3) package suitable for surface mounting, presented on tape and reel. The ISL80103IRAJZ-T7A finds application in various sectors including telecommunications, computing, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 9 mA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 10-DFN (3x3) |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | 62dB ~ 55dB (120Hz ~ 1kHz) |
| Voltage Dropout (Max) | 0.244V @ 3A |
| Protection Features | Over Temperature, Short Circuit |
| Current - Supply (Max) | 12 mA |
