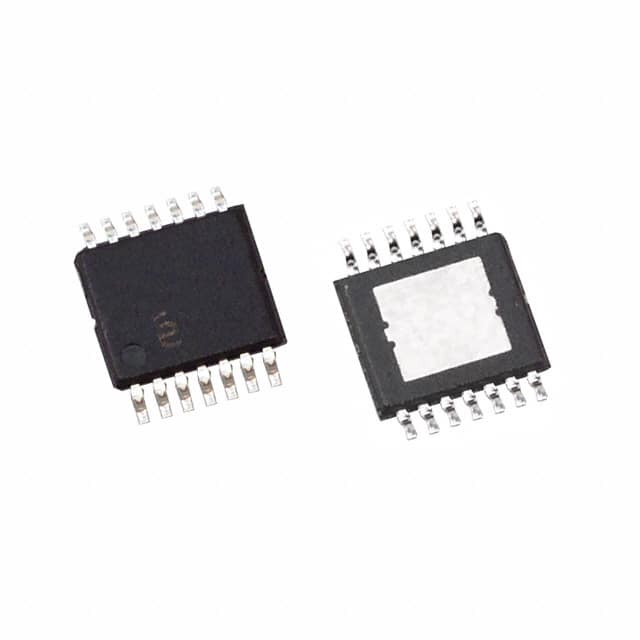

ISL78301FVEBZ
IC REG LINEAR 5V 150MA 14HTSSOPManufacturer: Renesas Electronics Corporation
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 14-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 28 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | 14-HTSSOP |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 55dB (100Hz) |
| Voltage Dropout (Max) | 0.46V @ 150mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 142 µA |
| Qualification | AEC-Q100 |
Request a Quote
