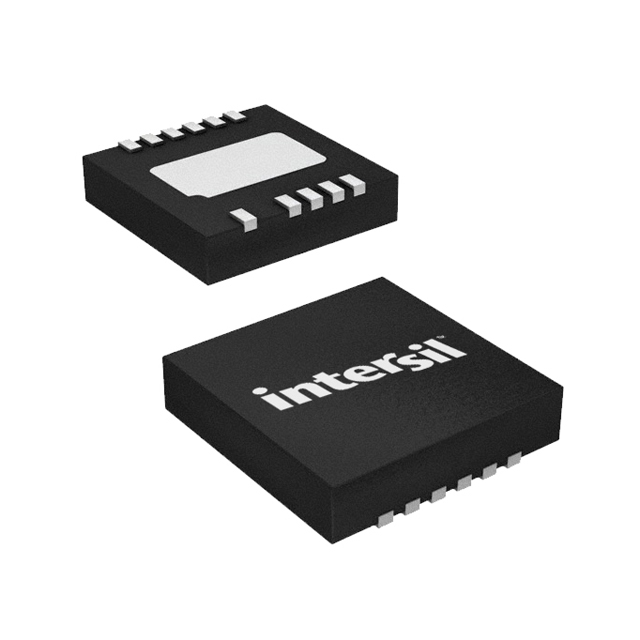

ISL6720AARZ
IC REG LINEAR POS ADJ 11DFNManufacturer: Renesas Electronics Corporation
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Renesas Electronics Corporation's ISL6720AARZ is a triple output, positive adjustable linear voltage regulator. This component delivers three regulated output voltages with maximum currents of 125mA, 50mA, and 25mA. The adjustable output voltage can be set from 0V up to a maximum of 20V, with a fixed 5V option available. Featuring an enable control pin and over-temperature protection, the ISL6720AARZ is housed in an 11-DFN (4x4) exposed pad package for surface mounting. The quiescent current is 1.7 mA, and it operates within a temperature range of -40°C to 105°C. This device is suitable for applications in power supplies, industrial control, and telecommunications. The maximum input voltage is 100V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 11-VFDFN Exposed Pad |
| Output Type | Adjustable (Fixed) |
| Mounting Type | Surface Mount |
| Current - Output | 125mA, 50mA, 25mA |
| Operating Temperature | -40°C ~ 105°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.7 mA |
| Voltage - Input (Max) | 100V |
| Number of Regulators | 3 |
| Supplier Device Package | 11-DFN (4x4) |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 0V (5V) |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | - |
| Protection Features | Over Temperature |
