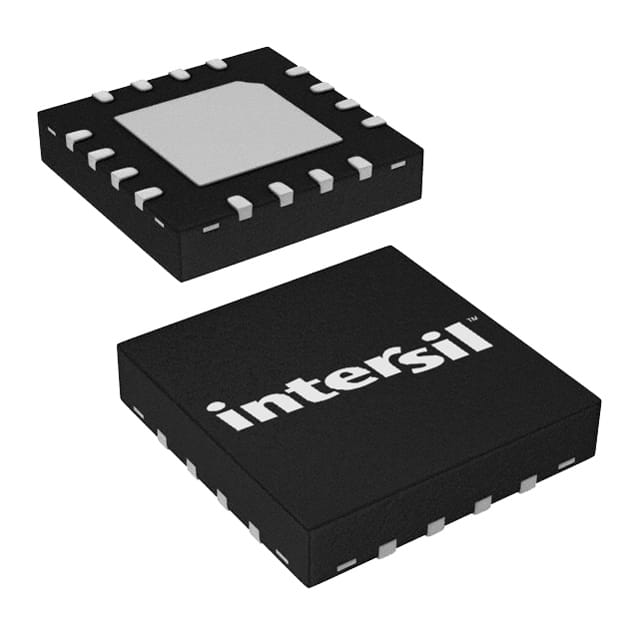

ISL97693IRTZ-TK
IC LED DRV RGLTR PWM 30MA 16TQFNManufacturer: Renesas Electronics Corporation
Categories: LED Drivers
Quality Control: Learn More
The Renesas Electronics Corporation ISL97693IRTZ-TK is a 6-output LED driver IC featuring a DC-DC boost regulator. This device supports PWM dimming with an output current of 30mA per channel and a programmable output voltage up to 26V. The internal switch supports switching frequencies ranging from 400kHz to 1.5MHz. Designed for surface mount applications, it is provided in a 16-TQFN (3x3) package on tape and reel for automated assembly. Operating within a temperature range of -40°C to 85°C, this component is suitable for backlight applications in various display systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Voltage - Output | 26V |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Frequency | 400kHz ~ 1.5MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 16-TQFN (3x3) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.4V |
| Voltage - Supply (Max) | 5.5V |
