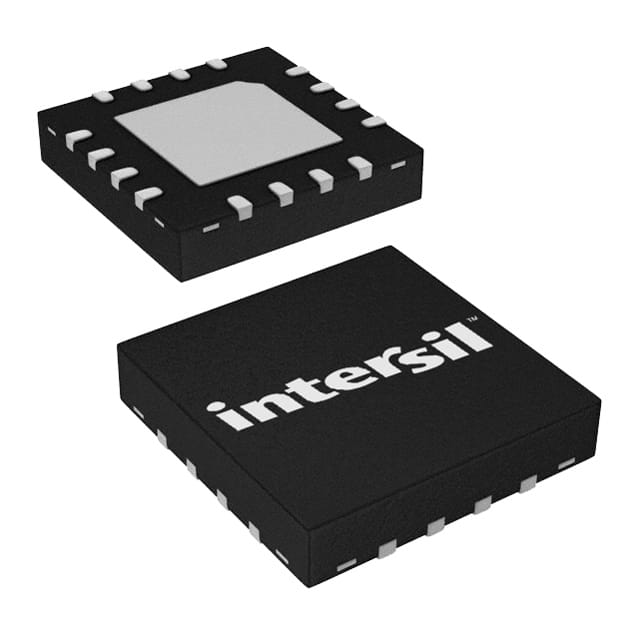

ISL97693IRTZ-T
IC LED DRV RGLTR PWM 30MA 16TQFNManufacturer: Renesas Electronics Corporation
Categories: LED Drivers
Quality Control: Learn More
The Renesas Electronics Corporation ISL97693IRTZ-T is a versatile 6-output LED driver IC designed for backlight applications. This DC-DC regulator features a step-up (boost) topology, capable of delivering up to 26V output with a supply range of 2.4V to 5.5V. The device integrates internal switches and supports PWM dimming with a configurable frequency between 400kHz and 1.5MHz, allowing for precise brightness control. Each of the six channels provides a regulated 30mA output current. The ISL97693IRTZ-T is housed in a 16-TQFN (3x3) package, suitable for surface mount installation, and is supplied on tape and reel. This component is optimized for efficient power management in display backlighting systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Voltage - Output | 26V |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Frequency | 400kHz ~ 1.5MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 16-TQFN (3x3) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.4V |
| Voltage - Supply (Max) | 5.5V |
