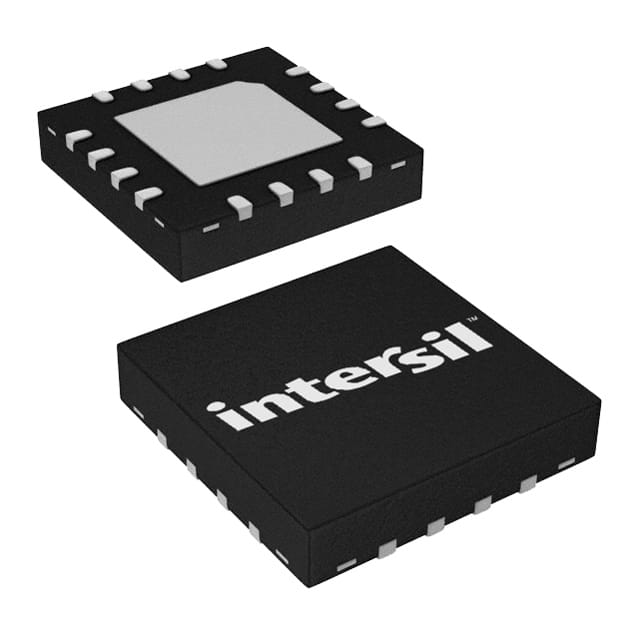

ISL97693IRTZ
IC LED DRV RGLTR PWM 30MA 16TQFNManufacturer: Renesas Electronics Corporation
Categories: LED Drivers
Quality Control: Learn More
The Renesas Electronics Corporation ISL97693IRTZ is a versatile LED driver IC designed for demanding backlight applications. This device features six internal DC-DC boost regulator channels, each capable of delivering up to 30mA of current. The ISL97693IRTZ incorporates PWM dimming for precise control of LED brightness, operating with a switching frequency range of 400kHz to 1.5MHz. It supports an output voltage up to 26V, with input supply voltages from 2.4V to 5.5V. The integrated switch functionality simplifies design and reduces external component count. Supplied in a 16-TQFN (3x3) package suitable for surface mounting, this electronic component is optimized for operation across an industrial temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFQFN Exposed Pad |
| Voltage - Output | 26V |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Frequency | 400kHz ~ 1.5MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 16-TQFN (3x3) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.4V |
| Voltage - Supply (Max) | 5.5V |
