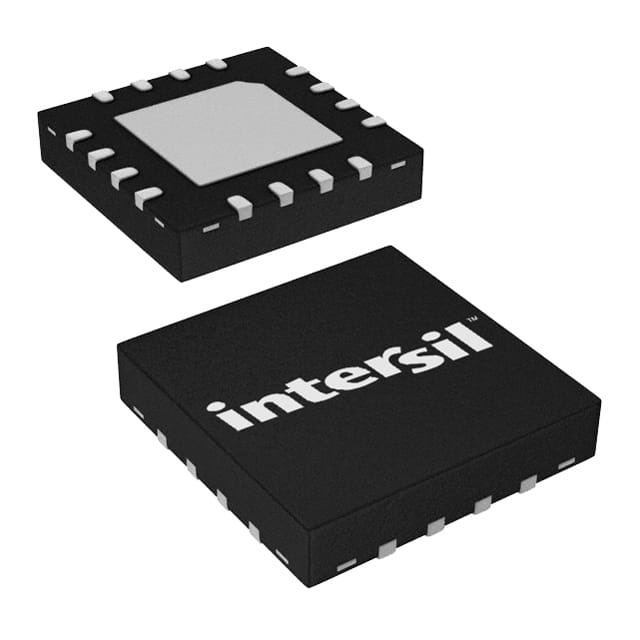

ISL97692IRTZ
IC LED DRV RGLTR PWM 40MA 16TQFNManufacturer: Renesas Electronics Corporation
Categories: LED Drivers
Quality Control: Learn More
The Renesas Electronics Corporation ISL97692IRTZ is a 4-output, DC-DC boost LED driver IC. This device features integrated switches and supports PWM dimming with a frequency range of 400kHz to 1.5MHz. Each output channel provides a regulated current of up to 40mA and can deliver an output voltage up to 26V. The ISL97692IRTZ operates from a supply voltage between 2.4V and 5.5V. Packaged in a 16-TQFN (3x3) with an exposed pad, this component is designed for surface mounting. Its topology is a step-up (boost) regulator. This LED driver is suitable for backlight applications. The operating temperature range is -40°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFQFN Exposed Pad |
| Voltage - Output | 26V |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 400kHz ~ 1.5MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 40mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 16-TQFN (3x3) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.4V |
| Voltage - Supply (Max) | 5.5V |
