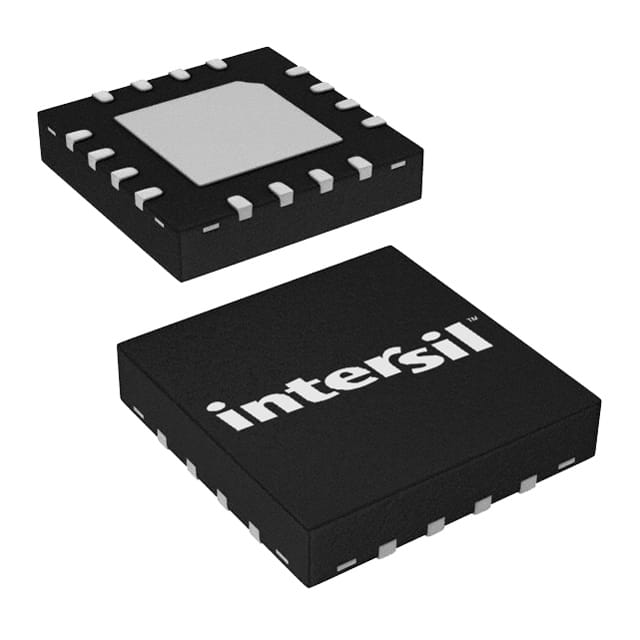

ISL97682IRTZ-TR5509
IC LED DRV RGLTR PWM 16TQFNManufacturer: Renesas Electronics Corporation
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 2 Output DC DC Regulator Step-Up (Boost) PWM Dimming 100mA 16-TQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Voltage - Output | 45V |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Frequency | 600kHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 100mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 16-TQFN (3x3) |
| Dimming | PWM |
| Voltage - Supply (Min) | 4V |
| Voltage - Supply (Max) | 26.5V |
