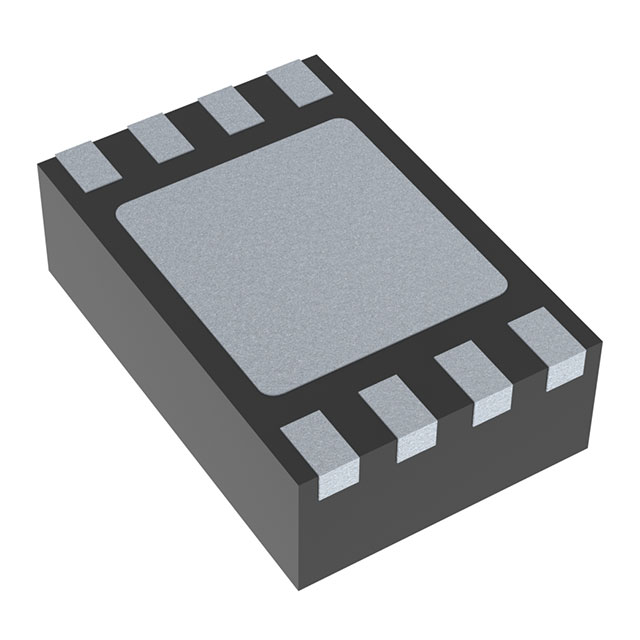

ISL97634IRT26Z-T
IC LED DRVR RGLTR PWM 30MA 8TDFNManufacturer: Renesas Electronics Corporation
Categories: LED Drivers
Quality Control: Learn More
The Renesas Electronics Corporation ISL97634IRT26Z-T is a highly efficient DC-DC regulator featuring a SEPIC and Step-Up (Boost) topology. This LED driver IC provides a single output channel capable of delivering up to 30mA with integrated PWM dimming functionality at a 1.45MHz switching frequency. Designed with an internal switch, it simplifies system design for backlight applications. The component is supplied in an 8-TDFN (2x3) package, suitable for surface mounting. Operating within a voltage supply range of 2.4V to 5.5V, the ISL97634IRT26Z-T is engineered for reliable performance across an industrial temperature range of -40°C to 85°C (TA). This device is commonly utilized in portable electronic devices and display backlighting solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 1.45MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | SEPIC, Step-Up (Boost) |
| Supplier Device Package | 8-TDFN (2x3) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.4V |
| Voltage - Supply (Max) | 5.5V |
