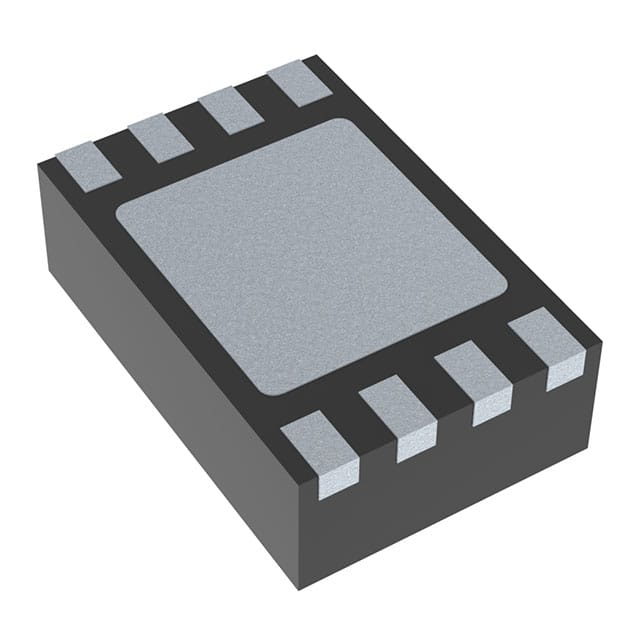

ISL97632IRT14Z-TK
IC LED DRIVER RGLTR 70MA 8TDFNManufacturer: Renesas Electronics Corporation
Categories: LED Drivers
Quality Control: Learn More
Renesas Electronics Corporation ISL97632IRT14Z-TK is a single-output DC-DC boost regulator designed for LED driving applications. This component features an integrated switch and operates at a frequency of 1.45MHz, enabling efficient power conversion. It delivers a regulated output current of up to 70mA per channel. The ISL97632IRT14Z-TK supports a supply voltage range of 2.4V to 5.5V and is housed in an 8-TDFN (2x3) exposed pad package, suitable for surface mount installation. This device is commonly utilized in backlight applications across various industries. The component is provided on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 1.45MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 70mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 8-TDFN (2x3) |
| Dimming | - |
| Voltage - Supply (Min) | 2.4V |
| Voltage - Supply (Max) | 5.5V |
