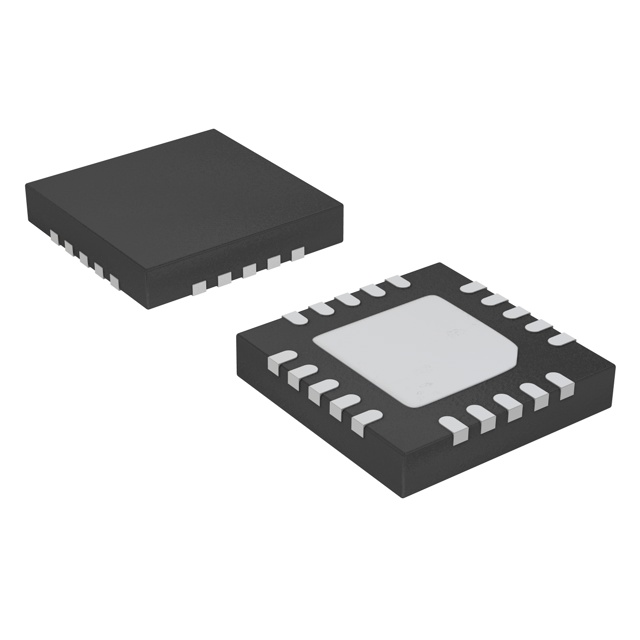

ISL78100ARZ-TK
IC LED DRIVER RGLTR PWM 1A 20QFNManufacturer: Renesas Electronics Corporation
Categories: LED Drivers
Quality Control: Learn More
Renesas Electronics Corporation's ISL78100ARZ-TK is a versatile 1A LED driver IC featuring a single output. This DC-DC regulator supports both step-down (buck) and step-up (boost) topologies, enabling flexible power management for LED applications. The device offers analog and PWM dimming capabilities, allowing for precise control of LED brightness. Operating with a supply voltage range of 2.7V to 16V, it can deliver an output voltage of up to 32V. The ISL78100ARZ-TK integrates internal switching and operates at a frequency of 1MHz, contributing to efficient power conversion. Its 20-QFN (4x4) package with an exposed pad is designed for surface mounting. Qualified to AEC-Q100 standards, this component is suitable for demanding automotive applications, particularly for LED backlighting. The ISL78100ARZ-TK is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Voltage - Output | 32V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 1A |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 20-QFN (4x4) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 16V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
