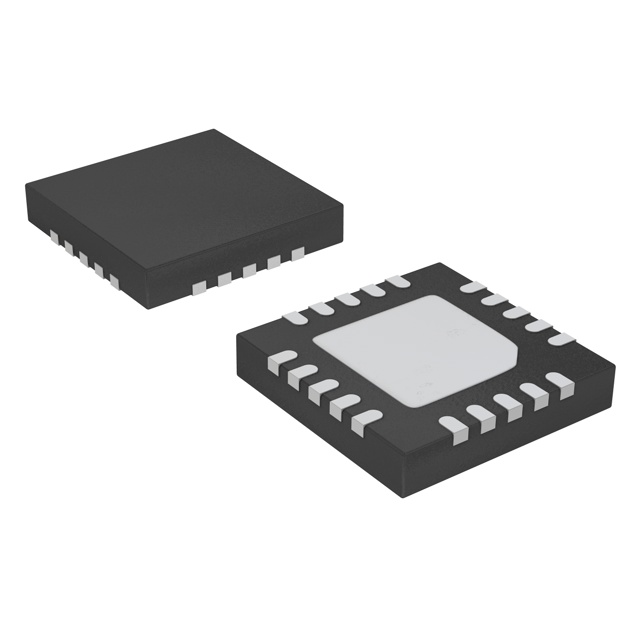

ISL78100ARZ-T
IC LED DRIVER RGLTR PWM 1A 20QFNManufacturer: Renesas Electronics Corporation
Categories: LED Drivers
Quality Control: Learn More
The Renesas Electronics Corporation ISL78100ARZ-T is a versatile LED driver IC. This DC-DC regulator features a single output with both step-down (buck) and step-up (boost) capabilities, operating with a 1A output current. It supports analog and PWM dimming control, with an integrated switch for efficient operation. The device is designed for automotive applications, qualified under AEC-Q100 standards. Its 20-QFN (4x4) package with exposed pad is suitable for surface mounting. The ISL78100ARZ-T operates from a supply voltage range of 2.7V to 16V, with a maximum output voltage of 32V, and a switching frequency of 1MHz. Its operating temperature range is -40°C to 105°C. This component finds application in automotive backlighting systems. It is supplied in a tape and reel package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Voltage - Output | 32V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 1A |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 20-QFN (4x4) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 16V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
