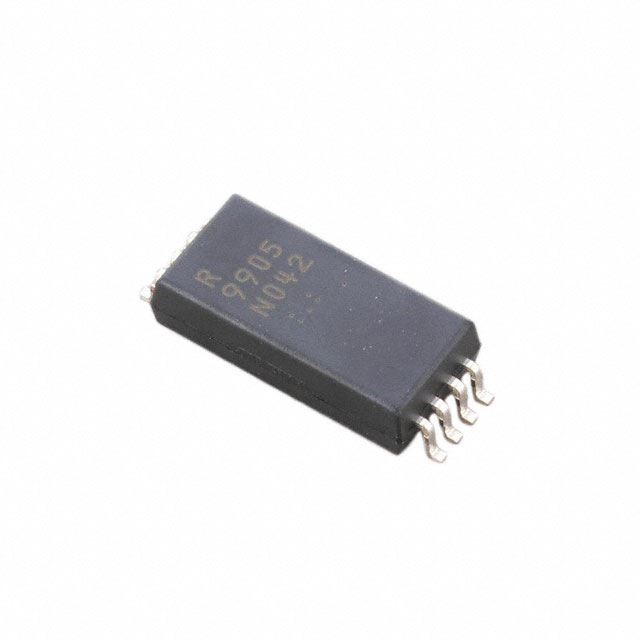

PS9905-Y-V-AX
OPTOISO 7.5KV 1CH GT DVR 8LSDIPManufacturer: Renesas Electronics Corporation
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation PS9905-Y-V-AX is an optically coupled gate driver designed for high-voltage applications. This single-channel component provides 7500Vrms of isolation and features a high peak output current of 2.5A. It is suitable for driving power MOSFETs and IGBTs, offering robust performance with a minimum common mode transient immunity of 25kV/µs. The device operates with an output supply voltage range of 15V to 30V and a typical forward voltage of 1.56V at a maximum forward current of 25mA. Propagation delay is specified at a maximum of 150ns for both tpLH and tpHL, with pulse width distortion not exceeding 75ns. Rise and fall times are typically 50ns. The PS9905-Y-V-AX is housed in an 8-LSDIP package and is surface mountable, with approvals from CSA, SEMKO, UL, and VDE. It finds application in industrial power supplies, motor control, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: StripDownload Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 8-SOIC (0.543"", 13.80mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Current - Peak Output | 2.5A |
| Technology | Optical Coupling |
| Current - Output High, Low | 2A, 2A |
| Voltage - Isolation | 7500Vrms |
| Approval Agency | CSA, SEMKO, UL, VDE |
| Supplier Device Package | 8-LSDIP |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | 75ns |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
