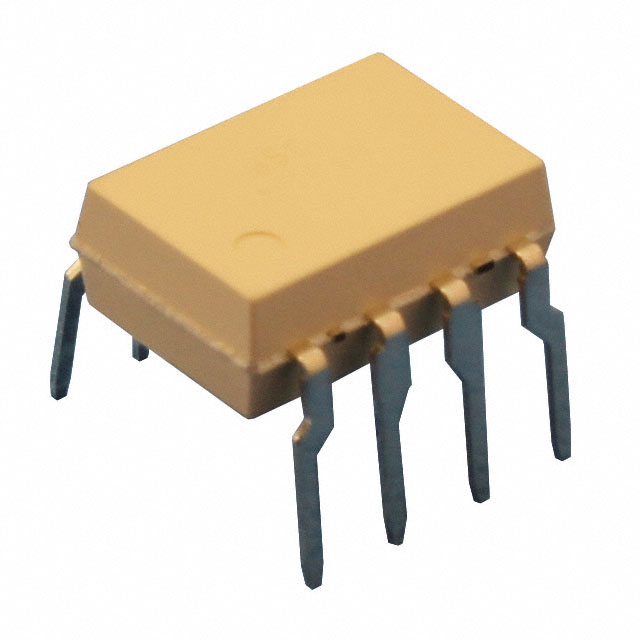

PS9505-AX
OPTOISO 5KV 1CH GATE DVR 8DIPManufacturer: Renesas Electronics Corporation
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation PS9505-AX is a single-channel optical isolation gate driver. This component provides 5000Vrms of isolation and features a 2.5A peak output current capability, with typical high and low output currents of 2A. Designed for through-hole mounting in an 8-DIP package, it offers common mode transient immunity of 25kV/µs. The device operates with a typical forward voltage of 1.56V at a maximum forward current of 25mA. Propagation delays are rated at a maximum of 250ns for both tpLH and tpHL, with a maximum pulse width distortion of 100ns. Typical rise and fall times are 50ns. This device is suitable for applications requiring robust isolation in industrial automation, power supplies, and motor control systems. It holds approvals from CSA, SEMKO, and UL.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Current - Peak Output | 2.5A |
| Technology | Optical Coupling |
| Current - Output High, Low | 2A, 2A |
| Voltage - Isolation | 5000Vrms |
| Approval Agency | CSA, SEMKO, UL |
| Supplier Device Package | 8-DIP |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns |
| Pulse Width Distortion (Max) | 100ns |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
