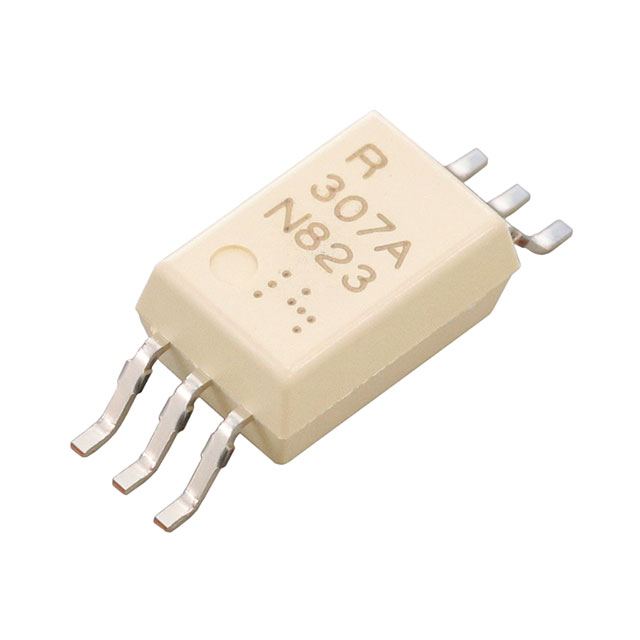

PS9307AL2-AX
OPTOISO 5KV 1CH GATE DVR 6SMDManufacturer: Renesas Electronics Corporation
Categories: Isolators - Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation PS9307AL2-AX is a 1-channel optical coupling gate driver designed for high-voltage isolation applications. This component provides 5000Vrms isolation, ensuring robust performance in demanding environments. It features a 6-SMD package for surface mounting and supports an output supply voltage range of 10V to 30V. The PS9307AL2-AX delivers a peak output current of 600mA, with typical rise and fall times of 30ns. Common mode transient immunity is rated at a minimum of 50kV/µs, and pulse width distortion is a maximum of 50ns. Propagation delays are a maximum of 150ns for both tpLH and tpHL. This device is commonly utilized in industrial automation, power supplies, and motor control systems where reliable isolation and precise gate drive are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 6-SOIC (0.268"", 6.80mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Current - Peak Output | 600mA |
| Technology | Optical Coupling |
| Current - Output High, Low | 400mA, 400mA |
| Voltage - Isolation | 5000Vrms |
| Approval Agency | - |
| Supplier Device Package | 6-SMD |
| Rise / Fall Time (Typ) | 30ns, 30ns |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | 50ns |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 10V ~ 30V |
