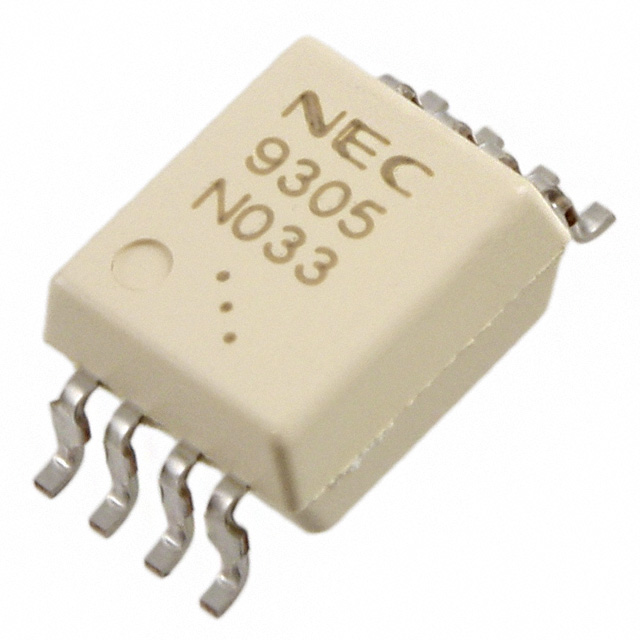

PS9305L-E3-AX
OPTOISO 5KV 1CH GATE DVR 8SDIPManufacturer: Renesas Electronics Corporation
Categories: Isolators - Gate Drivers
Quality Control: Learn More
The Renesas Electronics Corporation PS9305L-E3-AX is a 1-channel optical coupling gate driver. This component offers 5000Vrms isolation and supports a 2.5A peak output current with 2A high and low output current capabilities. Designed for surface mounting in an 8-SDIP Gull Wing package, it features a common mode transient immunity (CMTI) of a minimum 25kV/µs. Typical rise and fall times are 50ns, with maximum propagation delays of 250ns for tpLH and tpHL. Pulse width distortion is limited to a maximum of 100ns. The device operates within a temperature range of -40°C to 110°C and requires an output supply voltage between 15V and 30V. It is utilized in various industrial applications, including power supplies, motor control, and industrial automation. Approvals include CSA, SEMKO, and UL. This device is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.268"", 6.81mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Current - Peak Output | 2.5A |
| Technology | Optical Coupling |
| Current - Output High, Low | 2A, 2A |
| Voltage - Isolation | 5000Vrms |
| Approval Agency | CSA, SEMKO, UL |
| Supplier Device Package | 8-SDIP Gull Wing |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns |
| Pulse Width Distortion (Max) | 100ns |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
