ISL28417FVBZ-T7A
IC OPAMP GP 4 CIRCUIT 14TSSOPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation ISL28417FVBZ-T7A is a four-circuit, general-purpose operational amplifier. This device features a 1.5 MHz gain bandwidth product and a slew rate of 0.5V/µs, suitable for precision analog signal processing. It operates with a supply voltage span from 4.5V to 40V, drawing a quiescent current of 440µA per channel. Key specifications include a low input bias current of 80 pA and an input offset voltage of 10 µV, ensuring accuracy in sensitive applications. The output current capability per channel is 43 mA. This component is housed in a 14-TSSOP package and is supplied on tape and reel. The ISL28417FVBZ-T7A finds application in industrial automation, medical instrumentation, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

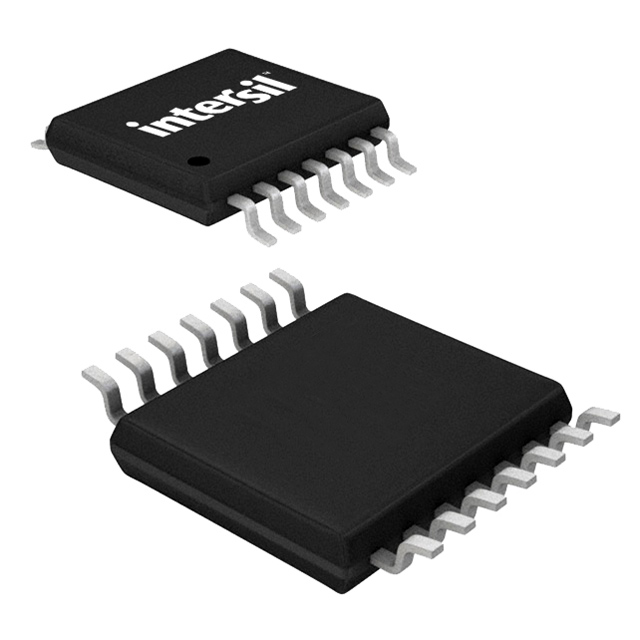

| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 440µA (x4 Channels) |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1.5 MHz |
| Current - Input Bias | 80 pA |
| Voltage - Input Offset | 10 µV |
| Supplier Device Package | 14-TSSOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 43 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 40 V |
