ISL28217FUZ-T7A
IC OPAMP GP 2 CIRCUIT 8MSOPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

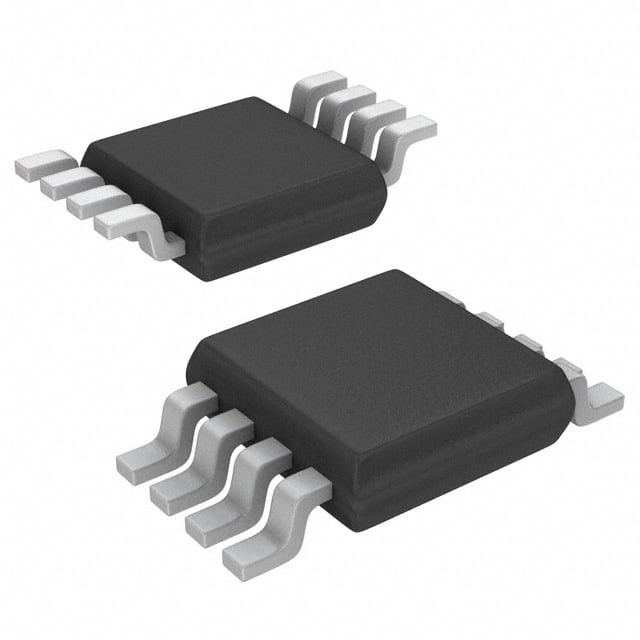

The Renesas Electronics Corporation ISL28217FUZ-T7A is a dual-circuit general-purpose operational amplifier. This surface-mount component, housed in an 8-MSOP package, features an 80 pA input bias current and a 4 µV input offset voltage, making it suitable for precision applications. The amplifier offers a 1.5 MHz gain-bandwidth product and a 0.5V/µs slew rate. Each channel draws a maximum of 440µA, with an output current capability of 43 mA. Operating within a supply voltage span of 4.5 V to 40 V, the ISL28217FUZ-T7A is designed for use within the automotive and industrial sectors. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 440µA (x2 Channels) |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1.5 MHz |
| Current - Input Bias | 80 pA |
| Voltage - Input Offset | 4 µV |
| Supplier Device Package | 8-MSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 43 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 40 V |
