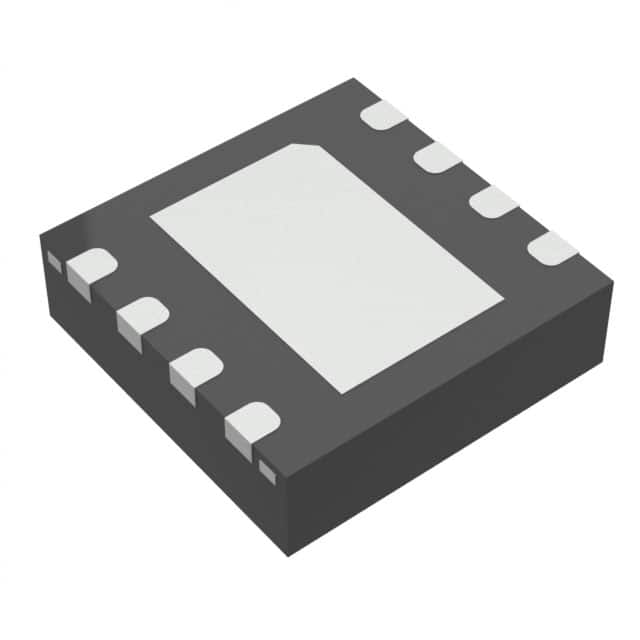

ISL28208FRTZ
IC OPAMP GP 2 CIRCUIT 8TDFNManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation ISL28208FRTZ is a general-purpose operational amplifier featuring two independent channels. This device offers rail-to-rail output performance and operates over a wide supply voltage range from 3V to 40V. With a gain bandwidth product of 1.2 MHz and a slew rate of 0.45V/µs, it is suitable for various analog signal processing applications. The ISL28208FRTZ exhibits low input bias current of 13 nA and a minimal input offset voltage of 25 µV, contributing to accurate signal amplification. Each channel draws a quiescent current of 185µA, and the output current capability is 30 mA. This component is housed in an 8-TDFN (3x3) package with an exposed pad for enhanced thermal management, facilitating surface mounting. The ISL28208FRTZ is designed for operation across a temperature range of -40°C to 125°C and finds application in industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 185µA (x2 Channels) |
| Slew Rate | 0.45V/µs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 13 nA |
| Voltage - Input Offset | 25 µV |
| Supplier Device Package | 8-TDFN (3x3) |
| Number of Circuits | 2 |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 40 V |
