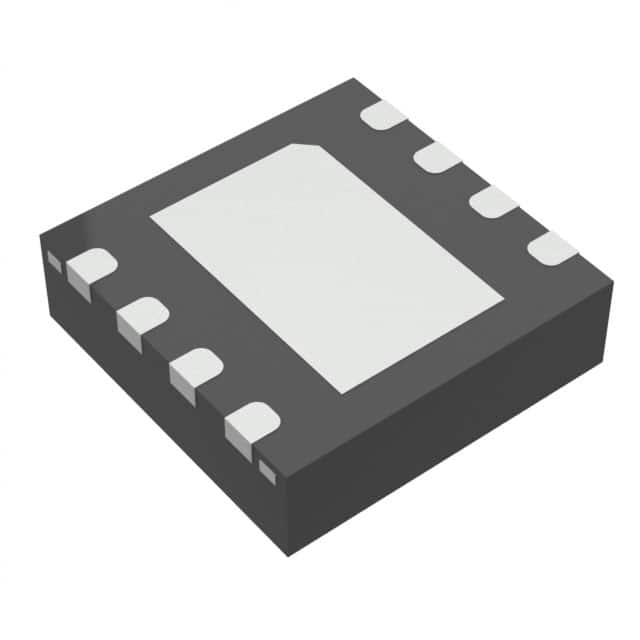

ISL28207FRTZ
IC OPAMP GP 2 CIRCUIT 8TDFNManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation ISL28207FRTZ is a dual-channel, general-purpose operational amplifier. Featuring a gain bandwidth product of 1 MHz and a slew rate of 0.32 V/µs, this device is suitable for various signal conditioning applications. It operates over a wide supply voltage range of 4.5 V to 40 V. Key specifications include a low input bias current of 15 pA and a minimal input offset voltage of 5 µV. The ISL28207FRTZ draws a quiescent current of 210 µA per channel. This component is available in an 8-TDFN (3x3) package with an exposed pad for enhanced thermal performance, designed for surface mounting. Typical applications include industrial automation, medical instrumentation, and automotive electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 210µA (x2 Channels) |
| Slew Rate | 0.32V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 15 pA |
| Voltage - Input Offset | 5 µV |
| Supplier Device Package | 8-TDFN (3x3) |
| Number of Circuits | 2 |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 40 V |
