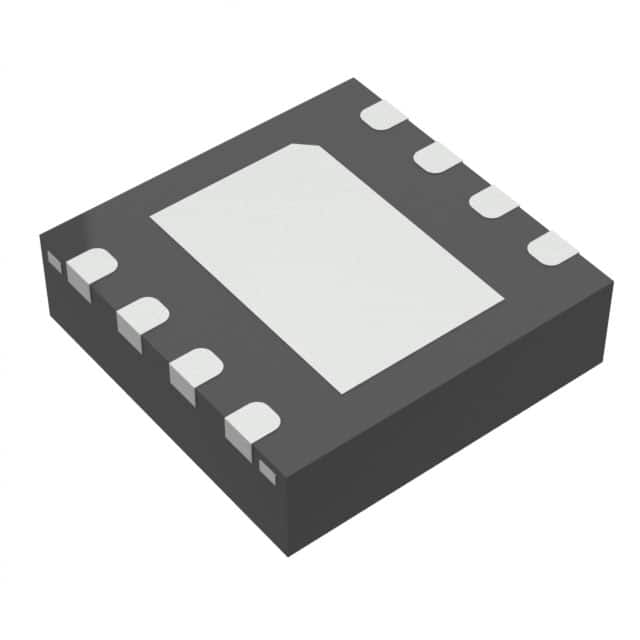

ISL24021IRT065Z-T7A
IC VOLTAGE FEEDBACK 1 CIRC 8TDFNManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Renesas Electronics Corporation ISL24021IRT065Z-T7A is a single-circuit, rail-to-rail voltage feedback amplifier. This component features a -3dB bandwidth of 27 MHz and a slew rate of 19V/µs, making it suitable for applications requiring high-speed signal processing. It operates from a 4.5V to 19V supply span with a typical quiescent current of 2.2mA. The device offers a high output current capability of 300mA per channel. Input bias current is a low 2 nA, and input offset voltage is 1.4 mV. The ISL24021IRT065Z-T7A is housed in an 8-TDFN (3x3) package with an exposed pad, designed for surface mounting. This amplifier is commonly utilized in industrial, medical, and consumer electronics sectors. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 2.2mA |
| Slew Rate | 19V/µs |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 1.4 mV |
| Supplier Device Package | 8-TDFN (3x3) |
| Number of Circuits | 1 |
| Current - Output / Channel | 300 mA |
| -3db Bandwidth | 27 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 19 V |
