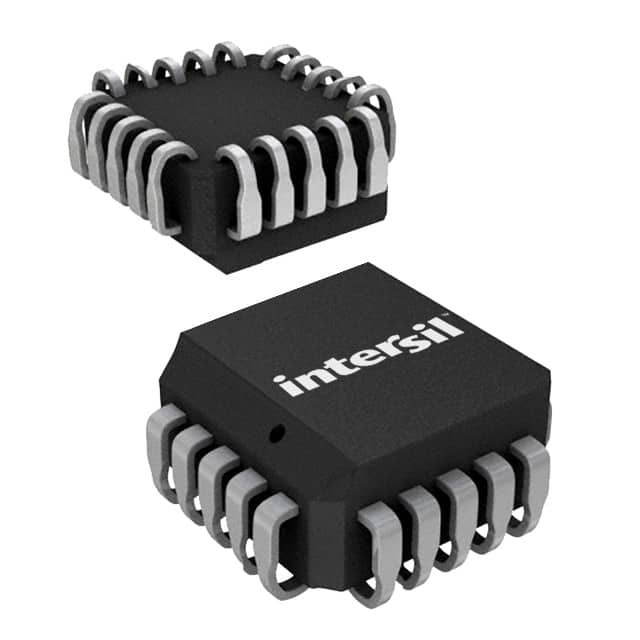

HA4P5002-5Z
IC BUFFER 1 CIRCUIT 20PLCCManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Renesas Electronics Corporation HA4P5002-5Z is a high-performance buffer amplifier IC featuring a single circuit within a 20-PLCC (9x9) package. This component offers a -3dB bandwidth of 110 MHz and a rapid slew rate of 1300V/µs, making it suitable for demanding signal conditioning applications. The device operates with a supply voltage range of 10V to 40V and exhibits a low input bias current of 2 µA. Its output current capability is 220 mA per channel. The HA4P5002-5Z is designed for surface mount applications and operates within a temperature range of 0°C to 75°C. This buffer amplifier finds utility in various instrumentation and high-speed signal processing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LCC (J-Lead) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Buffer |
| Operating Temperature | 0°C ~ 75°C |
| Current - Supply | 8.3mA |
| Slew Rate | 1300V/µs |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 5 mV |
| Supplier Device Package | 20-PLCC (9x9) |
| Number of Circuits | 1 |
| Current - Output / Channel | 220 mA |
| -3db Bandwidth | 110 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 40 V |
