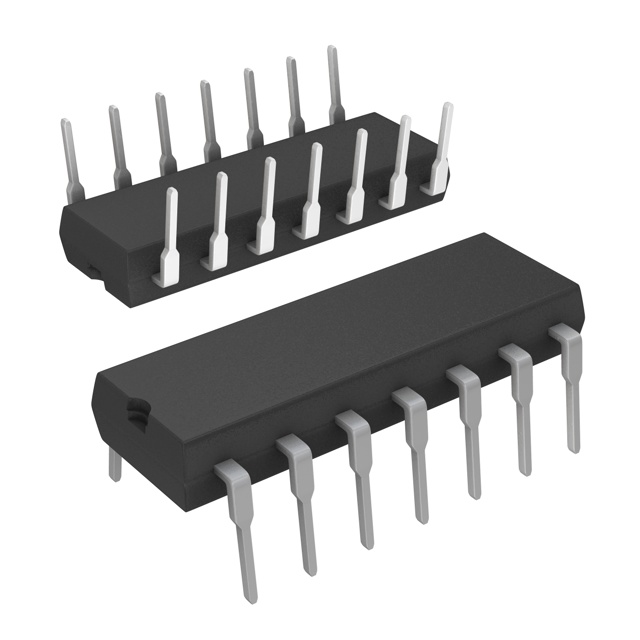

HA3-2425-5
IC SAMPL/HOLD 1 CIRCUIT 14DIPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation HA3-2425-5 is a monolithic sample and hold amplifier featuring a single circuit in a 14-pin DIP package. This component offers a gain bandwidth product of 2.5 MHz and a slew rate of 5V/µs. It requires a supply voltage range of 24V to 30V with a typical supply current of 3.5mA. The input bias current is rated at 40 nA, and the output current capability is 15 mA. The device operates within a temperature range of 0°C to 75°C. Mounting is via through-hole technology. This amplifier finds application in instrumentation and data acquisition systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Sample and Hold |
| Operating Temperature | 0°C ~ 75°C |
| Current - Supply | 3.5mA |
| Slew Rate | 5V/µs |
| Gain Bandwidth Product | 2.5 MHz |
| Current - Input Bias | 40 nA |
| Voltage - Input Offset | 3 mV |
| Supplier Device Package | 14-PDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 15 mA |
| Voltage - Supply Span (Min) | 24 V |
| Voltage - Supply Span (Max) | 30 V |
