HA1630S01LPEL-E
IC OPAMP GP 1 CIRCUIT 5MPAKManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

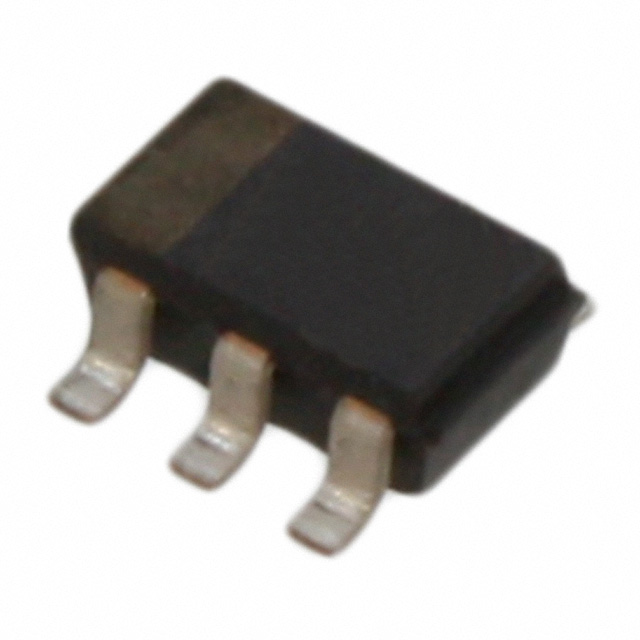

Renesas Electronics Corporation HA1630S01LPEL-E is a general-purpose operational amplifier featuring a single circuit in a compact 5-MPAK (SC-74A, SOT-753) surface-mount package. This component is designed for applications requiring low power consumption, with a typical supply current of 15 µA and a wide operating voltage range from 1.8 V to 5.5 V. The amplifier offers a gain bandwidth product of 200 kHz and a slew rate of 0.125 V/µs, making it suitable for signal conditioning and amplification tasks. Key electrical characteristics include a low input bias current of 1 pA and an output current per channel of 800 µA. The device operates within a temperature range of -40°C to 85°C and is supplied on tape and reel. Its specifications lend themselves to use in portable electronics, sensor interfaces, and battery-powered instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 15µA |
| Slew Rate | 0.125V/µs |
| Gain Bandwidth Product | 200 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 4 mV |
| Supplier Device Package | 5-MPAK |
| Number of Circuits | 1 |
| Current - Output / Channel | 800 µA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
