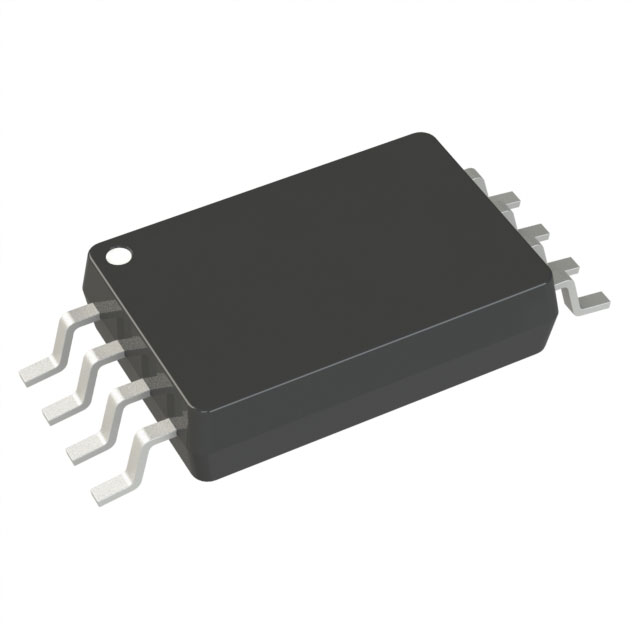

HA1630D05TEL-E
IC CMOS 2 CIRCUIT 8TSSOPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation HA1630D05TEL-E is a dual-channel CMOS amplifier housed in an 8-TSSOP package. This component offers a gain bandwidth product of 3.3 MHz and a slew rate of 4V/µs, making it suitable for various signal conditioning applications. Each channel features a low input bias current of 1 pA and can deliver an output current of 6 mA. The device operates with a supply voltage range of 1.8V to 5.5V, drawing a quiescent current of 800µA per channel. With an operating temperature range of -40°C to 85°C, it finds utility in industrial, consumer electronics, and medical instrumentation sectors. The 8-TSSOP (0.173", 4.40mm Width) package is designed for surface mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 800µA (x2 Channels) |
| Slew Rate | 4V/µs |
| Gain Bandwidth Product | 3.3 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 4 mV |
| Supplier Device Package | 8-TSSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 6 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
